As a professional high quality Simple Heater With Sensor manufacture, you can rest assured to buy Simple Heater With Sensor from our factory and we will offer you the best after-sale service and timely delivery. Shenzhen Xinhongda Galvanothermy Technology Co., Ltd. adhered to he principle of "quality is the life", to provide customers with the best quality, the most competitive prices, the first-class after-sales service.

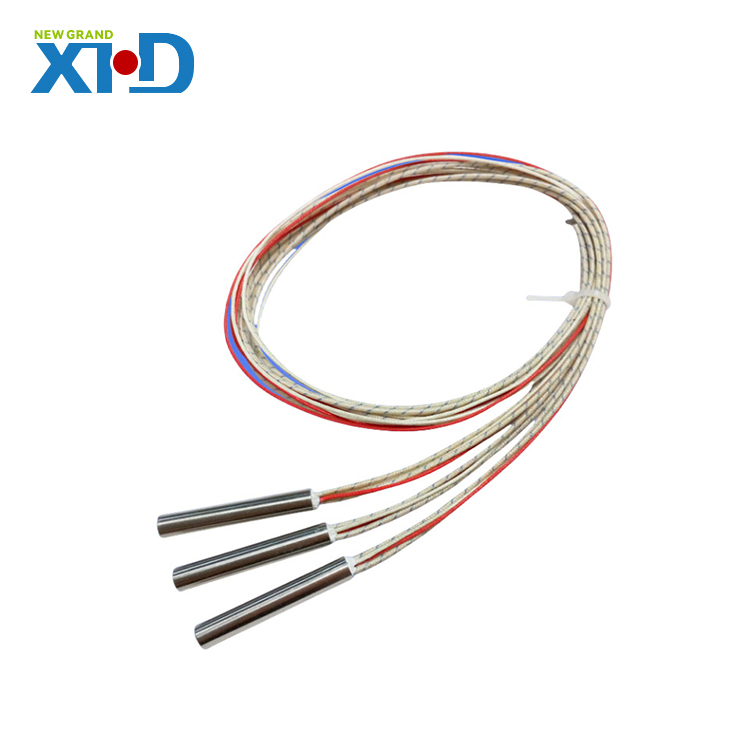

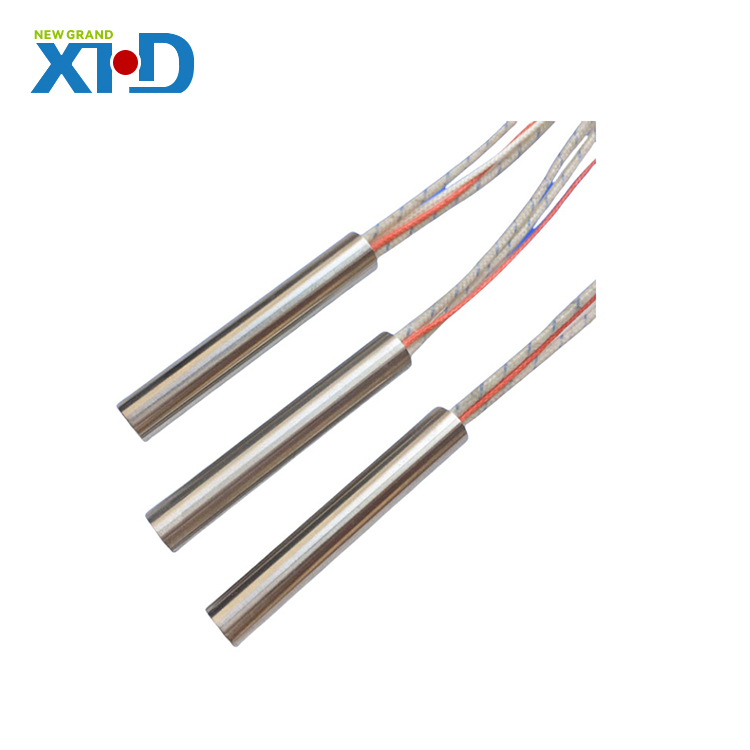

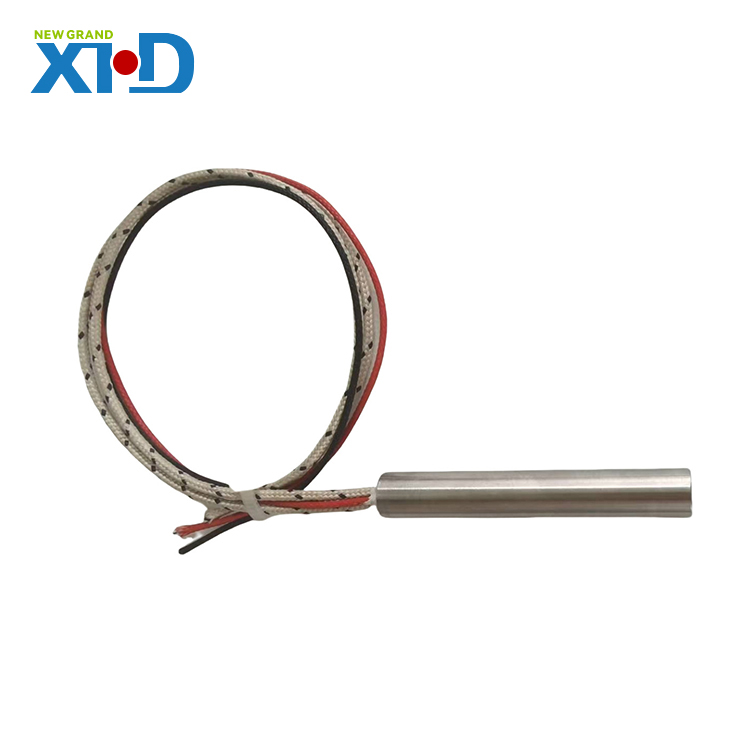

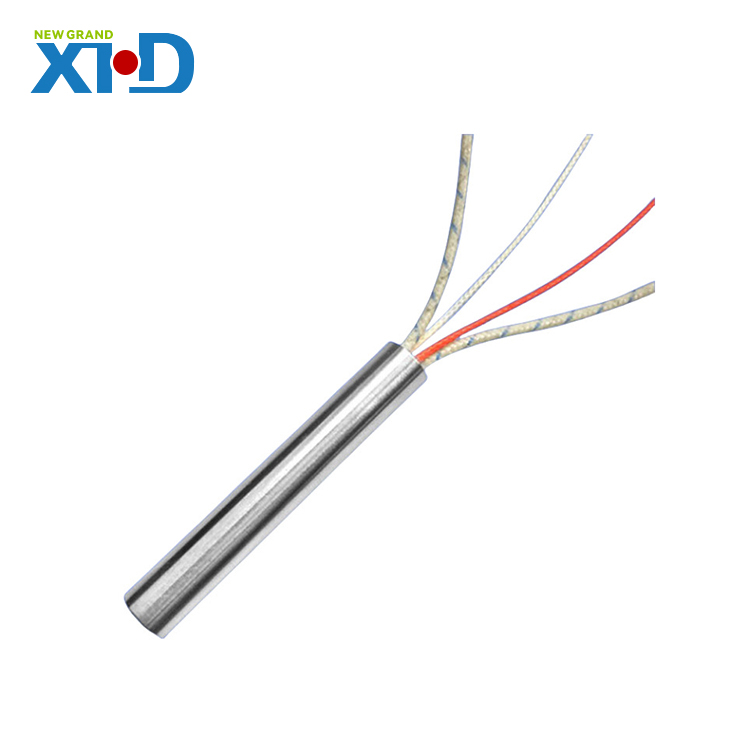

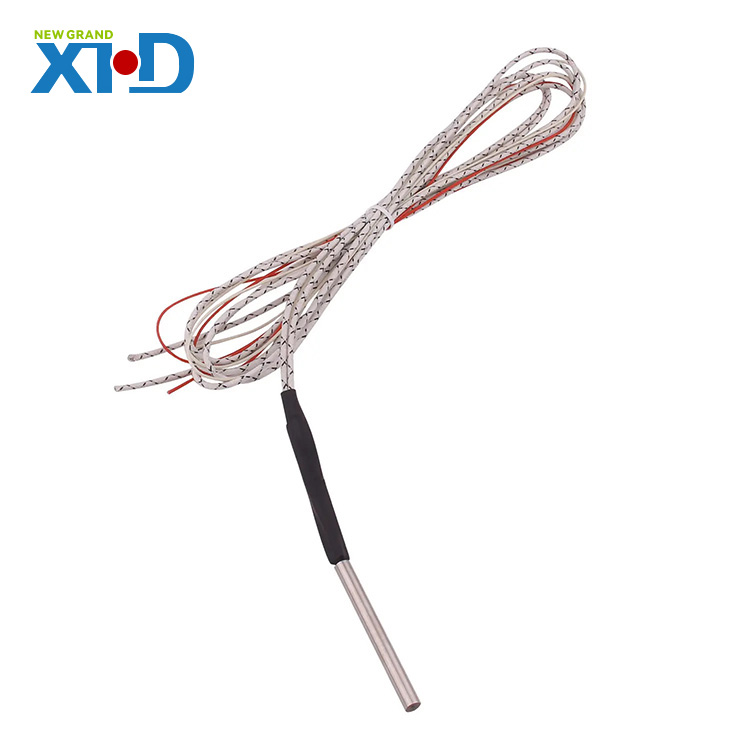

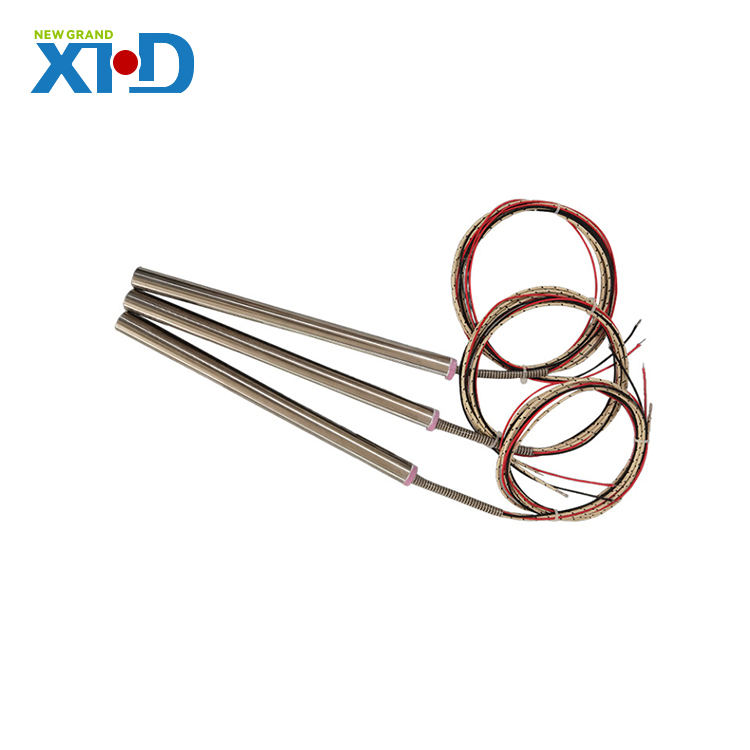

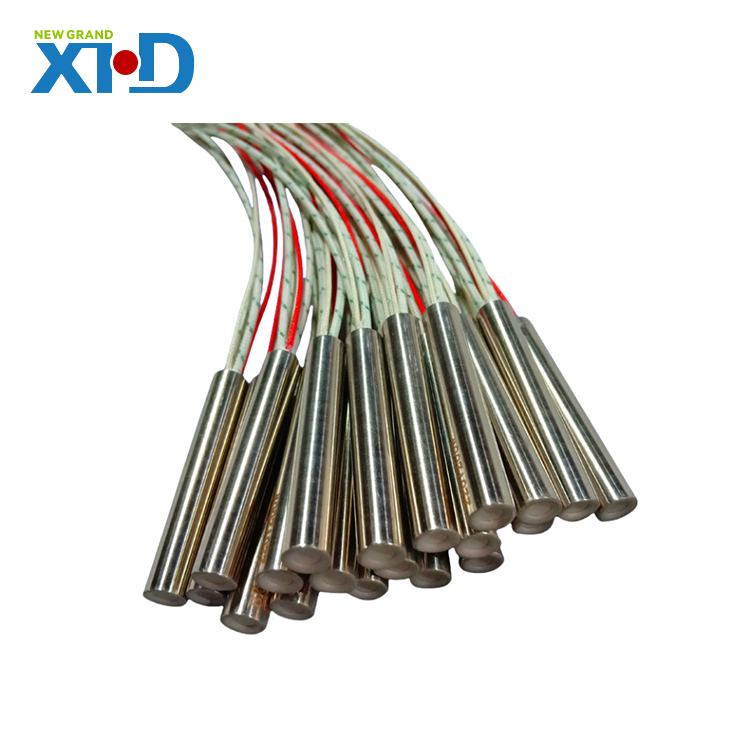

Simple Heater With Sensor is a high-tech heating element with integrated temperature sensor. It not only has all the advantages of cartridge heaters, such as high efficiency, stability, and easy installation, but also realizes real-time monitoring and control of heating temperature through built-in sensors. This design makes Simple Heater With Sensor perform well in occasions that require precise temperature control, such as laboratories, medical equipment, precision industrial production lines, etc.
1.Integrated temperature sensor: Built-in high-precision temperature sensor, real-time monitoring of the temperature of the heating tube, ensuring precise control of the heating process.
2. Single-head heating design: Only one end is heated, energy is concentrated, heating efficiency is high, and unnecessary thermal effects are avoided.
3. High-quality materials: The shell is made of high-quality stainless steel or titanium alloy, and the interior is filled with high-performance insulation materials and high-temperature resistant heating wire to ensure durability and long life.
4. Intelligent temperature control: With advanced temperature control system, intelligent adjustment and control are achieved according to the temperature information fed back by the sensor to maintain a constant temperature.
5. Safe and reliable: With good insulation performance and thermal stability, built-in overheating protection device, effectively prevent dry burning and overheating, and ensure safe use.
6. Easy to integrate: Provide standard electrical and mechanical interfaces, convenient integration with customer equipment, and reduce installation and maintenance costs.
Shell material: stainless steel 304, stainless steel 321, titanium alloy, etc., which can be selected according to the working environment and temperature.
Heating wire: high-quality nickel-chromium alloy or iron-chromium-aluminum alloy heating wire is used, and the power can be customized according to customer needs.
Insulation filler: high-temperature insulating magnesium oxide powder to ensure the insulation performance of the heating tube at high temperatures.
High-temperature lead: silicone high-temperature lead or mica high-temperature lead is used, which is resistant to high temperature and corrosion.
Rated voltage: 12V, 24V, 36V, 72V, 110V, 220V, 380V, etc., which can be customized according to customer needs.
Power range: 50W-3000W, the specific power can be customized according to customer requirements and heating tube size.
Pipe diameter: can be customized according to customer requirements, common specifications are 3mm-25mm.
Length: Can be customized according to customer requirements to meet different heating needs.
Sensor type: Thermocouple, Thermistor, etc., Select according to customer needs.
Measurement accuracy: ±1℃ ( Higher accuracy can be customized according to customer needs).
Response time: Less than 1 second ( Fast response, Ensure real-time temperature control).
Simple Heater With Sensor is mainly used in heating occasions where the heating temperature is more accurate:
1. Sample heating and constant temperature control in laboratory equipment.
2. Local heating treatment and constant temperature maintenance in medical equipment.
3. Mold heating and hot plate heating in precision industrial production lines.
4. Other occasions that require precise temperature control.
