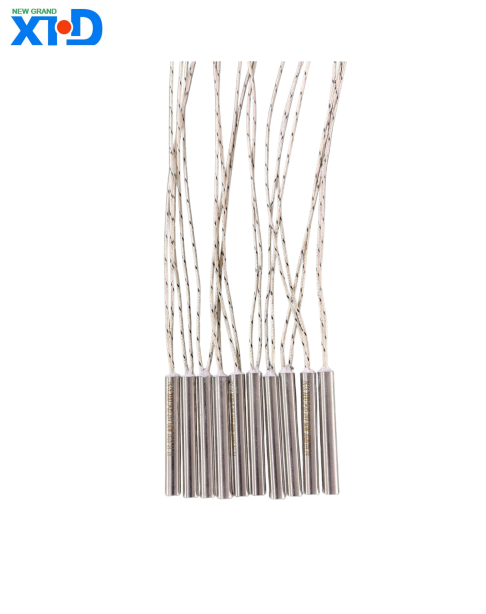

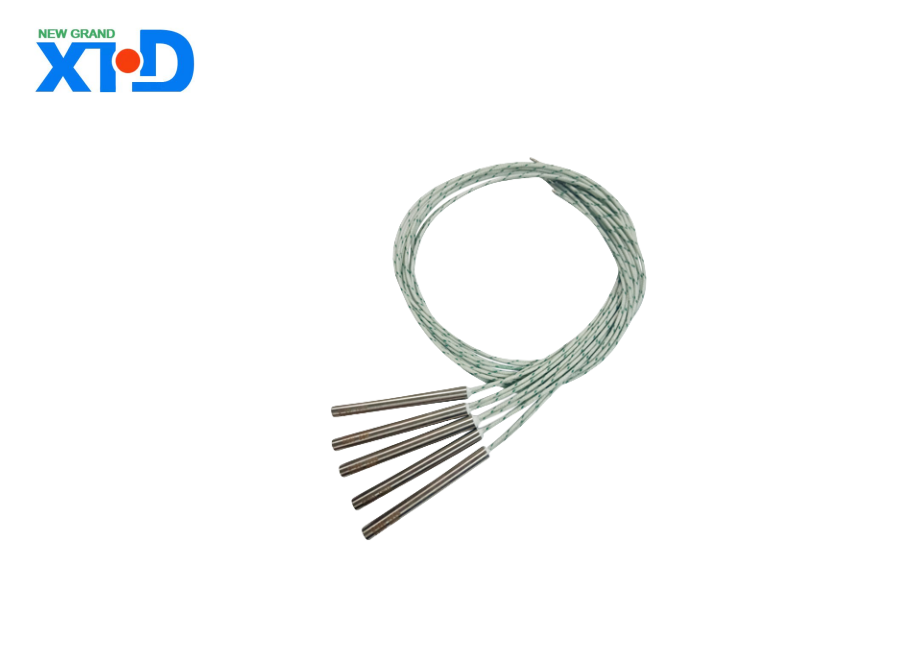

Micro Cartridge Heater is a precision heating element designed specifically for narrow spaces, with a diameter typically between 3-5.9 millimeters and a length that can be customized to 15-200 millimeters according to requirements. It adopts a structure of single end outgoing and one end closed, encapsulating high resistance electric heating alloy wire in a metal tube and filling it with high-purity magnesium oxide powder to achieve insulation and thermal conductivity. It combines small size and strong heating performance, and is an ideal heating solution in precision manufacturing, laboratory equipment and other fields.
1、 Product Overview
Micro Cartridge Heater is a precision heating element designed specifically for narrow spaces, with a diameter typically between 3-5.9 millimeters and a length that can be customized to 15-200 millimeters according to requirements. It adopts a structure of single end outgoing and one end closed, encapsulating high resistance electric heating alloy wire in a metal tube and filling it with high-purity magnesium oxide powder to achieve insulation and thermal conductivity. It combines small size and strong heating performance, and is an ideal heating solution in precision manufacturing, laboratory equipment and other fields.
2、 Core advantages
（1） Extremely compact and suitable for narrow spaces
Compared to traditional heating elements, the slender diameter of Micro Cartridge Heaters allows them to be easily embedded into narrow structures such as 3D printer nozzles and micro injection molding machine hot runners, solving local heating problems. Some models only retain a cold end of about 1 centimeter, further improving space utilization and meeting the compact design requirements of precision equipment.
（2） Efficient heating, precise temperature control
The surface power density can reach 20-40W/cm ², and it can be heated to 300-400 ℃ in just a few seconds after being powered on. The thermal response speed far exceeds that of ordinary electric heating elements. Combined with built-in thermocouples, the temperature control accuracy can be controlled within ± 1 ℃, providing a stable temperature environment for equipment such as PCR machines and blood analyzers, ensuring the accuracy of experimental data.
（3） Stable and durable, safe and reliable
Adopting high-quality stainless steel or high nickel alloy shells such as SUS304 and SUS316L, it has excellent high temperature resistance and corrosion resistance, and some models can withstand temperatures up to 760 ℃. The cold insulation resistance is not less than 50M Ω, the leakage current is ≤ 0.5mA, and with multiple protection systems, the service life can reach more than 10000 hours, and it can work stably in harsh environments for a long time.
（4） Flexible customization and diverse adaptation
Supports a wide voltage range of 12V-440V and customized power of 50W-2000W. Different materials for the casing and wiring methods can be selected according to the application scenario, and even integrated temperature sensors can be used to achieve exposed or contact dual-mode temperature monitoring, meeting personalized needs in multiple fields such as medical, industrial, and consumer electronics.
3、 Application scenarios
In the medical field, providing precise temperature control for medical incubators and dental treatment equipment; In industrial automation, assisting in the heating of 3D printer nozzles and semiconductor wafer baking; In the field of consumer electronics, it is used as a fast heating module for instant water dispensers, curling irons, and other products. Whether it is precision experiments in laboratories or automated processes in industrial production, miniature single head electric heating tubes release large amounts of energy in small volumes, becoming the core components of modern heating technology.
