Introduction to Side Outlet Type Cartridge Heater Products
Side Outlet Type Cartridge Heater is a special category in the Cartridge Heater family. While retaining the core advantages of single head electric heating tubes, it has further expanded its application scenarios through innovative outlet design, becoming a cutting-edge choice in the industrial heating field.
1、 Unique structure, suitable for special scenarios

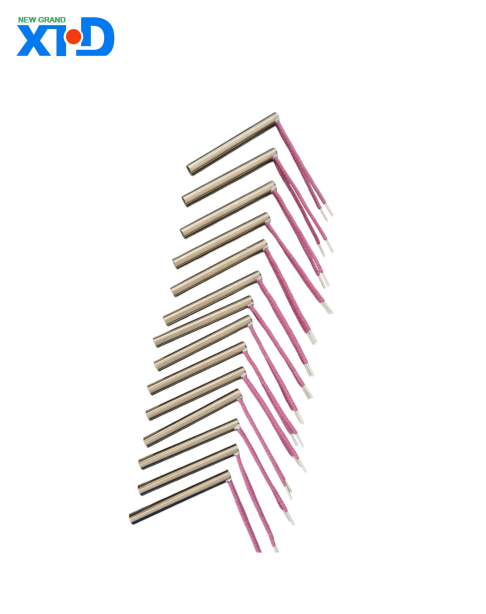

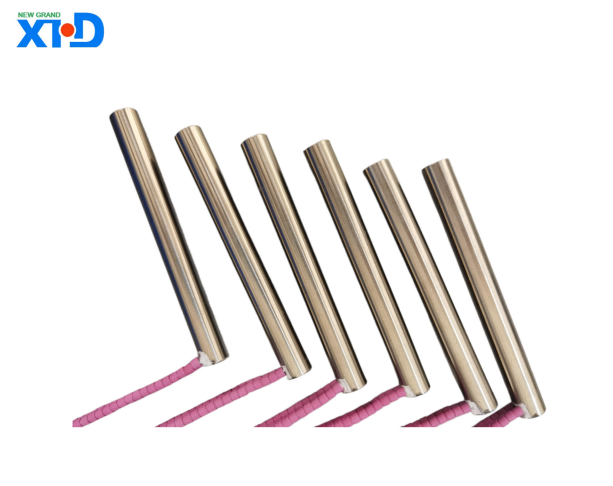

Unlike conventional single head electric heating tubes, the side outlet type single head electric heating tube sets the outlet port on the side of the tube body. This design cleverly solves the heating problem of limited top space, especially suitable for some molds and narrow cavity heating scenarios that have special requirements for installation space. Its core structure still continues the classic configuration: using stainless steel (SUS304, SUS316L, etc.), Incoloy840 and other high temperature and corrosion-resistant materials as the shell, embedding high resistance nickel chromium or iron chromium aluminum heating wires inside, and filling high-purity magnesium oxide powder as an insulating and heat-conducting medium to ensure efficient heat transfer while ensuring electrical safety.
2、 Excellent performance, meeting diverse needs
In terms of performance, the side profile single head electric heating tube is not inferior. It has the characteristic of rapid heating, which can reach the set temperature within tens of seconds, greatly improving heating efficiency; The surface power density can reach 1-40W/cm ², providing sufficient heat in a short period of time to meet high-intensity heating needs. The voltage range covers 12V-440V, and the power can be customized between 50W-20KW according to actual needs. The pipe diameter can be selected from Φ 2.0mm to Φ 35mm, and the length can also be flexibly adjusted to perfectly adapt to different heating conditions. In addition, its cold insulation resistance is not less than 50M Ω, and the leakage current is less than 0.5mA, which meets strict electrical safety standards.
3、 Widely applied, empowering the development of multiple industries
With its unique outlet design and excellent performance, the Side Outlet Type Cartridge Heater has demonstrated its prowess in multiple industries. In plastic molding molds, it can be precisely embedded into narrow heating channels to evenly heat the mold and ensure the quality of plastic product molding; In the field of new energy vehicle manufacturing, it can be used for battery PACK heating, cabin preheating and other scenarios to safeguard the low-temperature performance of new energy vehicles; In 3D printers, packaging machinery, and pharmaceutical equipment, stable and reliable heating can also be used to assist in the efficient operation of the equipment.
