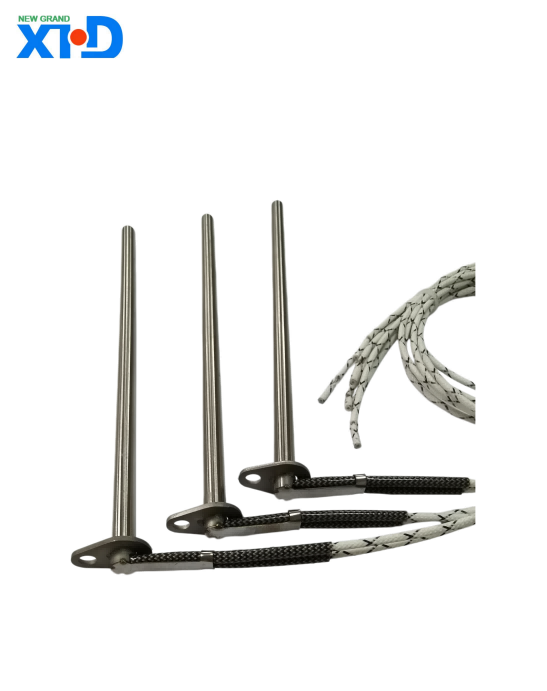

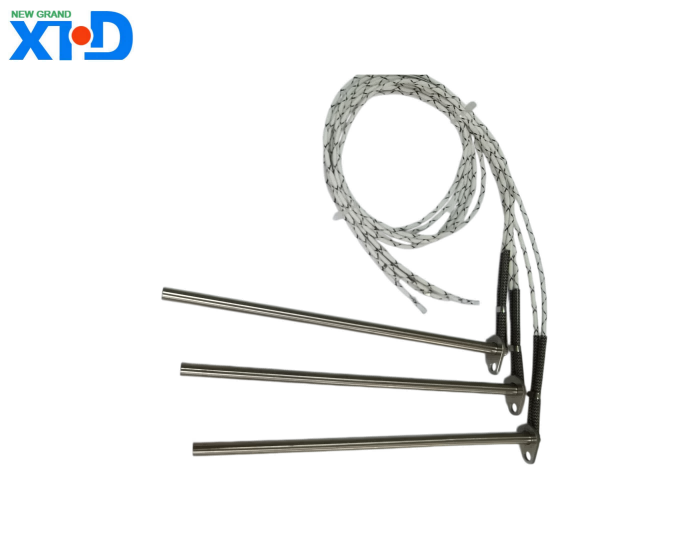

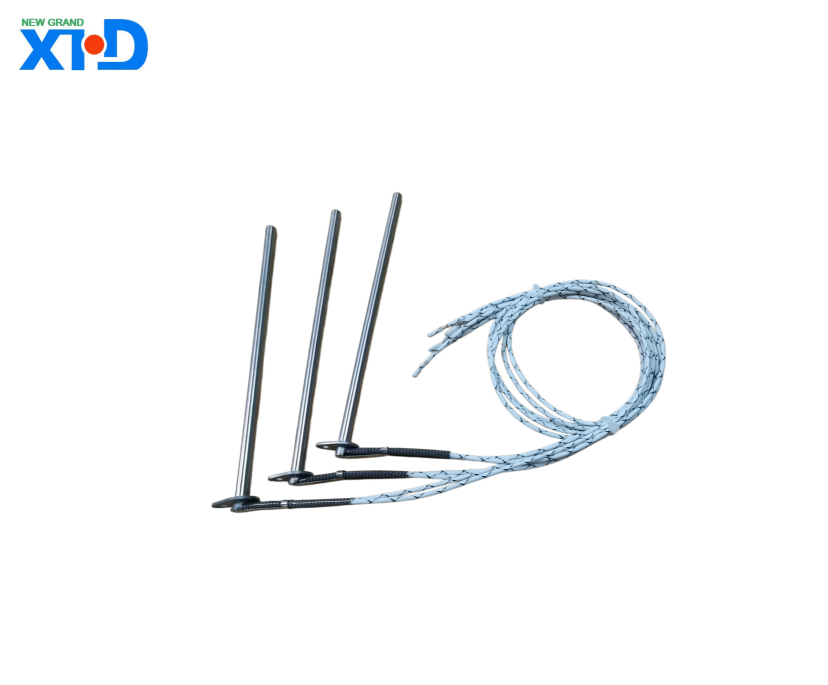

Side outlet type cartridge heater is an efficient and compact electric heating element that adopts a single end heating structure. The outlet end is led out from the side, suitable for scenarios with limited installation space and high requirements for heating accuracy. The product has the characteristics of rapid heating, high thermal efficiency, and long service life, and is widely used in many fields such as mold heating, plastic machinery, medical equipment, food processing, etc.
Product Specification for side outlet type cartridge heater
1、 Product Overview
Side outlet type cartridge heater is an efficient and compact electric heating element that adopts a single end heating structure. The outlet end is led out from the side, suitable for scenarios with limited installation space and high requirements for heating accuracy. The product has the characteristics of rapid heating, high thermal efficiency, and long service life, and is widely used in many fields such as mold heating, plastic machinery, medical equipment, food processing, etc.
2、 Technical parameters
（1） Electrical parameters
Voltage specifications: Supports customization of multiple voltages, including common specifications such as 110V, 220V, and 380V. Special voltage products can also be provided according to customer needs to meet the electrical requirements of different regions and equipment.
Power range: The power coverage ranges from 100W to 10000W, and can be accurately matched according to the volume, material, and heating requirements of the heating object, ensuring heating effect while avoiding energy waste.
Resistance value: Calculated based on voltage and power parameters, the resistance value tolerance is controlled within ± 5% to ensure the stability and consistency of electrical performance.
Insulation resistance: Under normal conditions, the insulation resistance is ≥ 1000M Ω; after the wet heat test, the insulation resistance is ≥ 10M Ω, effectively preventing the risk of leakage and ensuring electrical safety.
Voltage resistance performance: It can withstand a voltage test of 1500V/50Hz for 1 minute without breakdown or flashover, ensuring reliable operation of the product in complex electrical environments.
（2） Structural parameters
Pipe diameter specifications: Common pipe diameters include 6mm, 8mm, 10mm, 12mm, 16mm, etc. Special pipe diameters can also be customized according to customer needs to accommodate different installation apertures.
Heating tube length: The length range of the heating section is 50mm-2000mm, and the total length can be adjusted according to the actual installation space, flexibly meeting the layout requirements of various equipment.
Outgoing method: Adopting a side outgoing design, the length of the outgoing end is generally 100mm -300mm, and different specifications of outgoing wires can be equipped, such as silicone wire, PTFE wire, etc., to adapt to different working environment temperatures and insulation requirements.
Material Selection
Pipe materials: mainly made of stainless steel 304, stainless steel 316L, seamless copper pipes and other materials. Stainless steel 304 has good corrosion resistance and thermal conductivity, suitable for general environments; Stainless steel 316L performs well in harsh corrosive environments such as strong acids and alkalis; Seamless copper pipes have excellent thermal conductivity and are suitable for scenarios that require extremely high heating rates.
Heating wire: Imported nickel chromium alloy heating wire is used, which has the advantages of high temperature strength, good oxidation resistance, and long service life. It can maintain stable heating performance in long-term high-temperature working environments.
Insulation filling material: High density magnesium oxide powder is selected, which has excellent insulation and thermal conductivity properties, and can effectively transfer the heat generated by the heating wire to the surface of the pipe, while ensuring electrical insulation between the heating wire and the pipe.
3、 Performance characteristics
Efficient heating: The single ended heating structure, combined with high-quality heating wires, has a thermal efficiency of over 90%, which can quickly convert electrical energy into thermal energy, achieve rapid heating of the heating object, shorten the working cycle, and improve production efficiency.
Uniform temperature: Through optimized structural design and precise manufacturing processes, the temperature distribution on the surface of the heating tube is ensured to be uniform, with a temperature difference controlled within ± 5 ℃, effectively avoiding deformation and damage to the heating object due to local overheating, and ensuring the stability of product quality.
Strong durability: The heating wire adopts a winding process and undergoes strict annealing treatment to eliminate internal stress and improve vibration resistance; The surface of the pipe is specially treated to enhance wear resistance and corrosion resistance, and the normal service life of the product can reach more than 10000 hours.
Safe and reliable: Multiple insulation protection designs, including magnesium oxide powder insulation, lead out insulation sleeves, etc., effectively prevent leakage accidents from occurring; At the same time, the product has overheating protection function and can be equipped with temperature sensors and temperature control devices according to customer needs, achieving precise control of the heating process.
4、 Scope of application
Mold industry: Used for heating plastic molds, die-casting molds, rubber molds, etc., it can quickly increase the mold temperature, ensure product molding quality, and shorten the molding cycle.
Plastic Machinery: Used in injection molding machines, extruders, blow molding machines, and other equipment for heating the barrel, nozzle, and other parts to ensure uniform melting and stable extrusion of plastic raw materials.
Medical equipment: used in medical disinfection equipment, constant temperature incubators, blood analyzers, etc., providing a stable and accurate heating environment to meet the strict temperature control requirements in the medical field.
Food processing: Used in food baking equipment, beverage filling equipment, candy production equipment, etc., for heating, insulation and other processes to ensure temperature stability and safety during food processing.
Other fields: It can also be applied to chemical equipment, electronic component manufacturing, aerospace and other fields, providing reliable heat sources for various heating processes.
5、 Installation and usage precautions
（1） Installation requirements
Before installation, it is necessary to ensure that the size of the installation hole matches the diameter of the heating tube, and the clearance is generally controlled between 0.1mm and 0.2mm to avoid the heating tube shaking due to excessive clearance or installation difficulties caused by insufficient clearance.
During installation, handle with care to avoid collision or impact on the heating tube, prevent deformation of the pipe material or breakage of the internal heating wire.
The outgoing end should be protected from external forces such as tension and torque, and the outgoing wire should be properly fixed to prevent loose wiring caused by long-term vibration.
The heating tube should be fully inserted into the interior of the heated object, ensuring that the heating section is in contact with the heating medium to avoid dry burning.
（2） Precautions for use
Before the first use, the insulation resistance and voltage resistance of the heating tube should be checked to ensure that the product is free from damage, leakage, and other issues.
Suitable power lines and control switches should be equipped according to the power and voltage parameters of the heating tube to avoid overheating and burning of the line due to overload.
During use, dry burning of the heating tube should be avoided. It must be operated with electricity in the presence of a heating medium (such as air, liquid, solid, etc.), otherwise it may cause the heating tube to overheat and burn out.
Regularly inspect the heating tube, including visual inspection, insulation resistance testing, etc. If any abnormal conditions such as corrosion, deformation, or leakage are found on the surface, the use should be stopped and replaced in a timely manner.
During the use of heating tubes, contact with flammable, explosive, and highly corrosive substances should be avoided to prevent safety accidents or product damage.
6、 Quality Assurance
The product is produced and inspected strictly in accordance with the ISO9001 quality management system standard. From raw material procurement, production and processing to finished product delivery, every link is strictly controlled to ensure that the product quality meets the standard requirements.
The product comes with a 12-month quality assurance period from the date of manufacture. During the warranty period, if any damage is caused by product quality issues, our company will replace it for the customer free of charge; If the problem is caused by improper use or human damage by the customer, our company will provide a paid replacement service.
