With competitive prices and reliable delivery services, we are expecting become your long-term partner in China. You can rest assured to buy customized Wire Selection Cartridge Heater from us. If you want to know more, you can consult us now, we will reply to you in time!

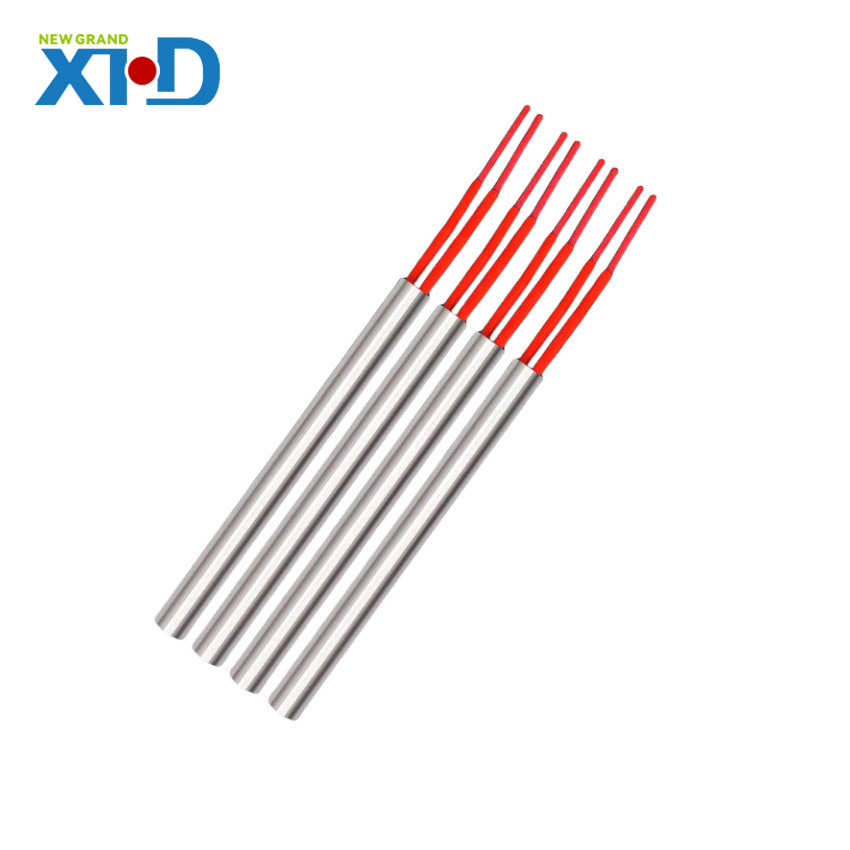

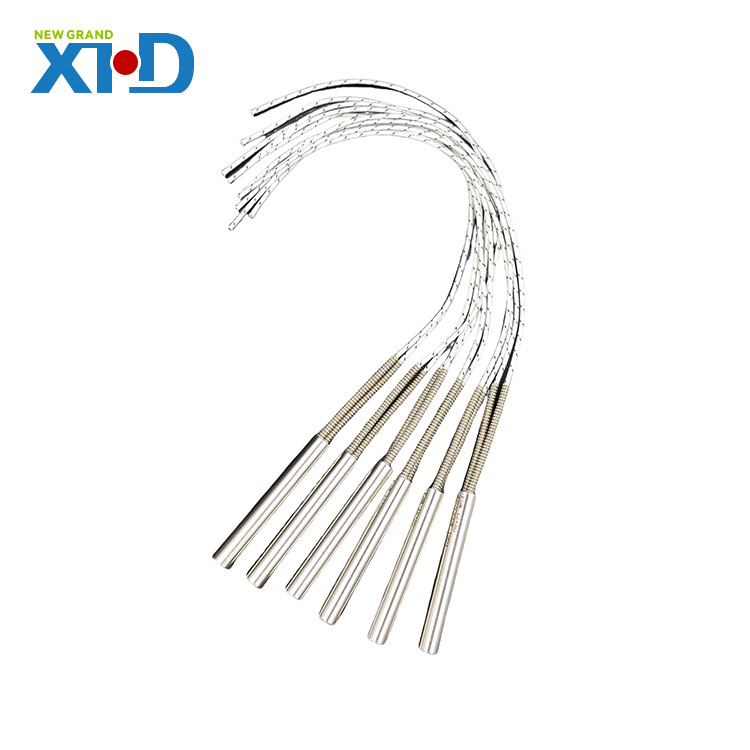

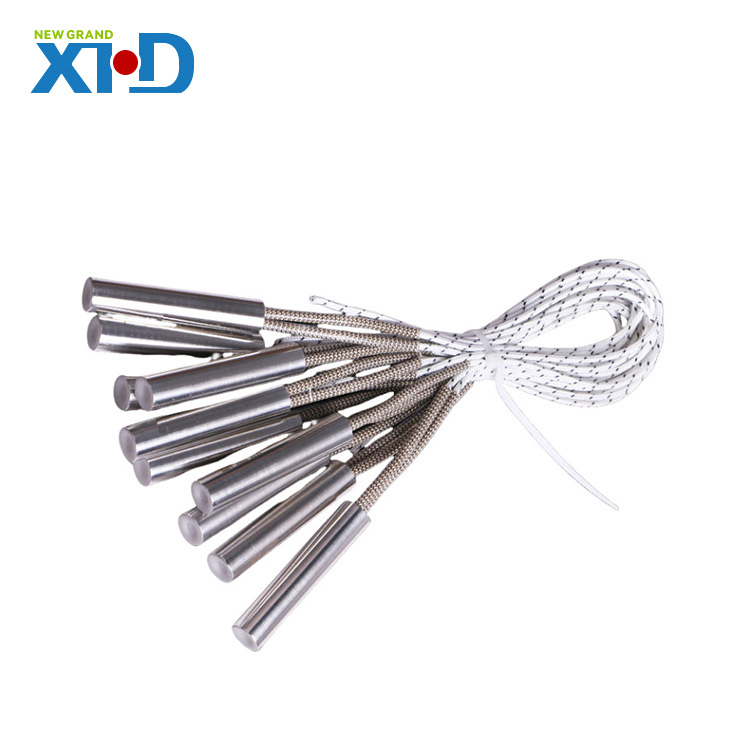

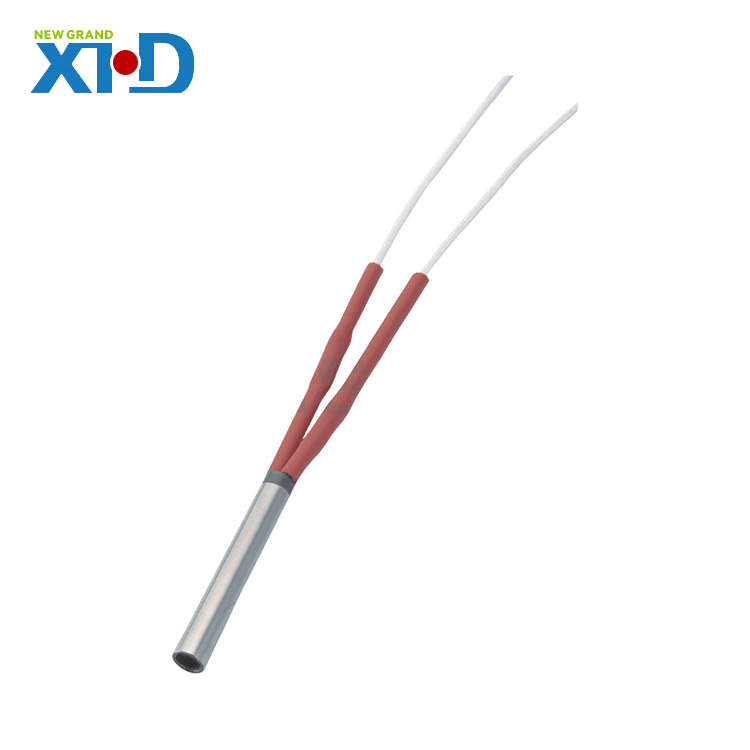

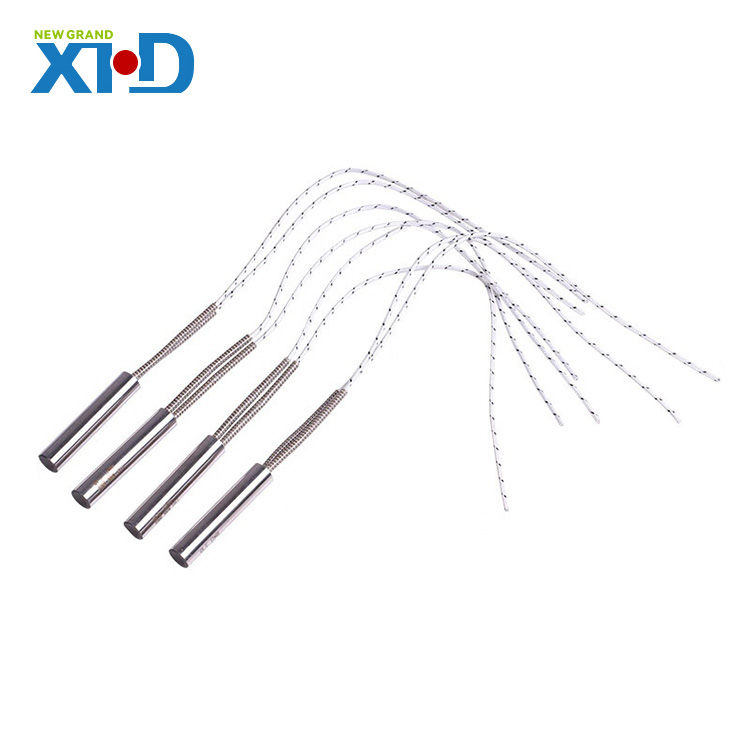

Wire Selection Cartridge Heater is an efficient and flexible heating element designed for applications that require local or fixed-point heating. This product combines advanced heating technology with user-friendly design to meet the needs of different installation and use environments by providing a variety of wire options. Its unique single-head design makes heat transfer more concentrated and significantly improves heating efficiency.
1. Diverse wire options: Provides a variety of wire options in specifications and types, including high temperature resistance, corrosion resistance, high flexibility, etc., to ensure perfect compatibility with various devices and simplify the installation process.
2. Efficient heating: Made of high-quality electric heating alloy materials, combined with precision manufacturing technology, ensures fast response and uniform heating, effectively improves heating efficiency and reduces energy consumption.
3. Single-head design: The unique single-head structure allows heat to act directly on the target area, reducing heat loss, and is suitable for applications that require precise temperature control.
4. Safe and reliable: Built-in high-quality insulation material, the outer layer is made of high-temperature resistant and fireproof materials to ensure electrical safety and thermal stability under long-term operation.
5. Easy to install and maintain: The compact design structure, combined with flexible wire selection, makes the heating tube easy to install in different positions. At the same time, the simple maintenance process reduces the long-term use cost.
- Shell material: Stainless steel 304, stainless steel 321, titanium alloy, etc., can be selected according to the working environment and temperature.
- Heating wire material: High-quality nickel-chromium alloy or iron-chromium-aluminum alloy to ensure heating effect and stability.
- Insulation filler: High-temperature insulating magnesium oxide powder to ensure the insulation performance of the heating tube at high temperature.
- Side outlet: High-temperature resistant and corrosion-resistant alloy wire is used to ensure the reliability and safety of the outlet part.
-Rated voltage: 12V, 24V, 36V, 48V, 110V, 220V, 380V, etc., can be customized according to customer needs.
-Power range: 100W-3000W, the specific power can be customized according to customer requirements and heating tube size.
-Tube diameter: can be customized according to customer requirements, common specifications are Φ6mm-Φ25mm.
-Length: can be customized according to customer requirements to meet different heating needs.
-Factory inspection standard: The cold insulation resistance is not less than 50MΩ, and the insulation resistance after long-term storage or use after the sealing test is not less than 1MΩ.
Wire Selection Cartridge Heater has many application fields, and several of them are listed.
-Industrial equipment: Suitable for heating systems of injection molding machines, extruders, mold temperature controllers and other equipment.
-Laboratory instruments: used for experimental equipment that requires precise temperature control, such as constant temperature baths, drying ovens, etc.
-Household appliances: realize fast heating functions in small appliances such as water dispensers, coffee machines, and electric irons.
-Medical equipment: used for heating components of medical devices and equipment, such as constant temperature incubators, physiotherapy equipment, etc.
We provide comprehensive customized services, including heating power, size, wire type and length, etc. to meet the specific needs of customers. Whether it is a standard product or a customized solution, we are committed to providing high-quality, high-performance Wire Selection Cartridge Heater to help customers improve equipment performance and achieve more precise temperature control.
