Shenzhen Xinhongda Galvanothermy Technology Co., Ltd. has been continuously developing and applying for more than 20 product technology patents in the production of heaters for 20 years. We will continue to follow the technology research and development route and continue to develop high-quality L Type Cartridge Heater to meet the needs of global customers for high-quality heaters. You are welcome to contact us to customize the heater products you need.

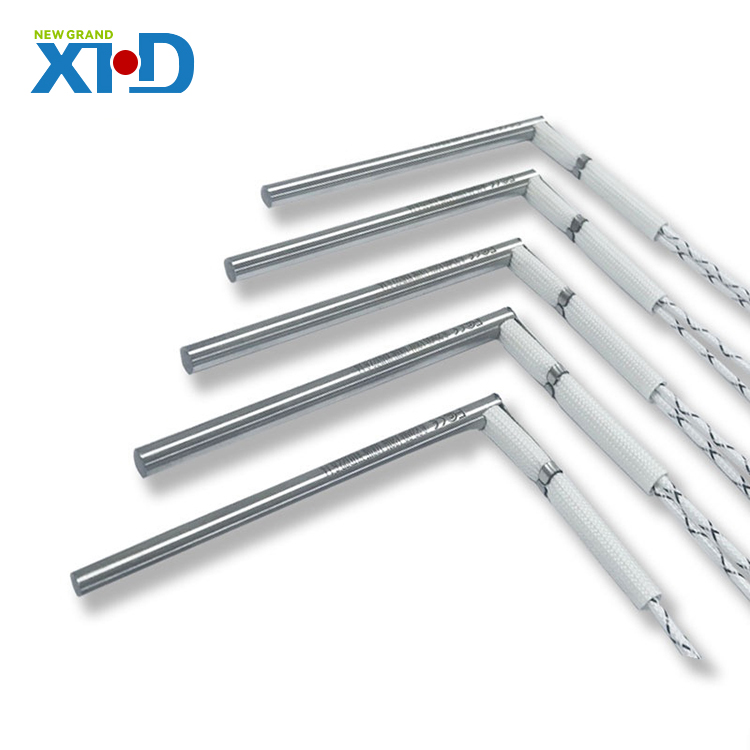

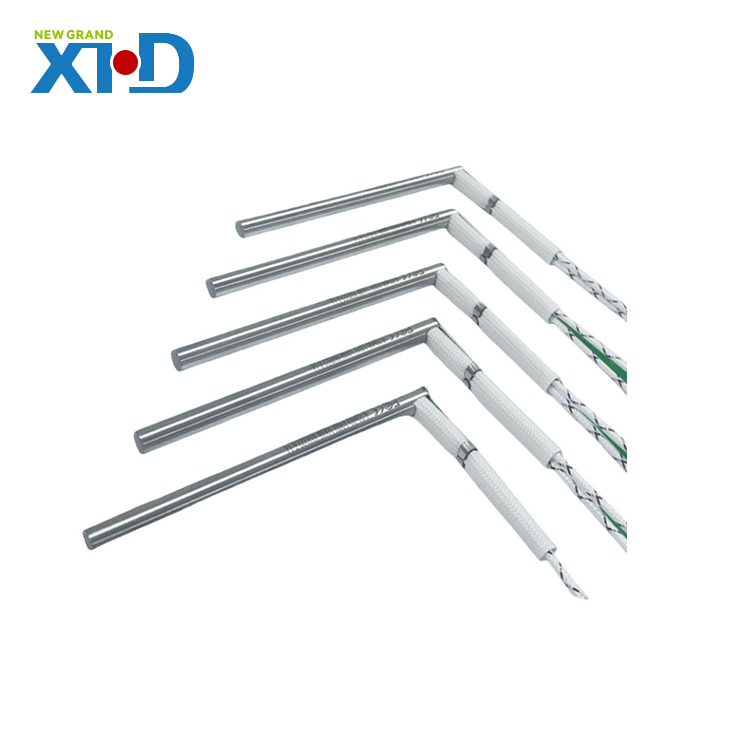

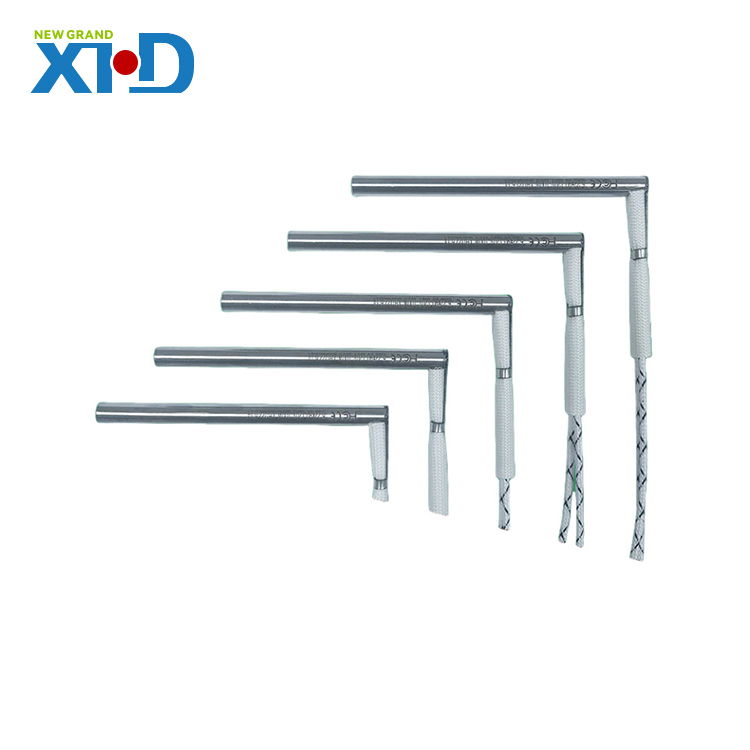

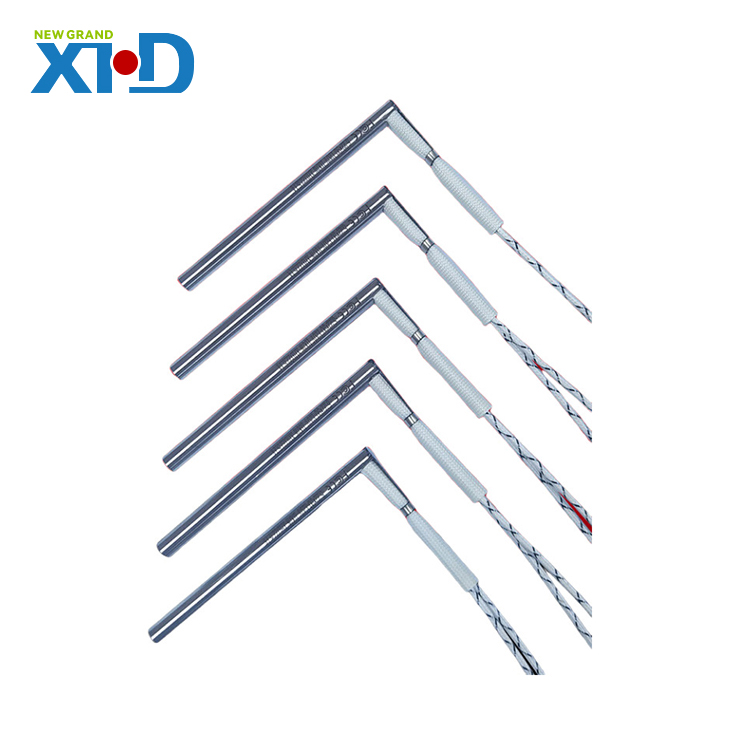

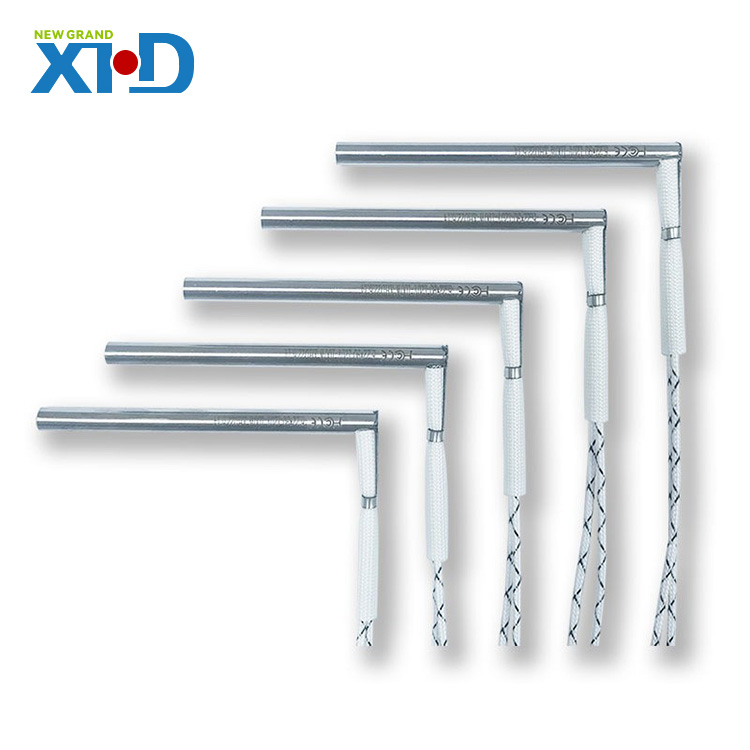

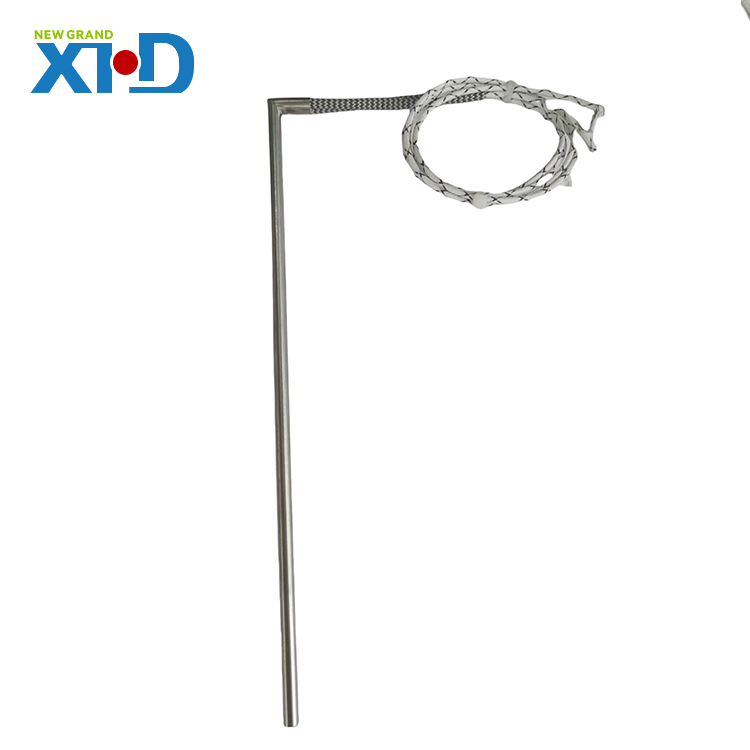

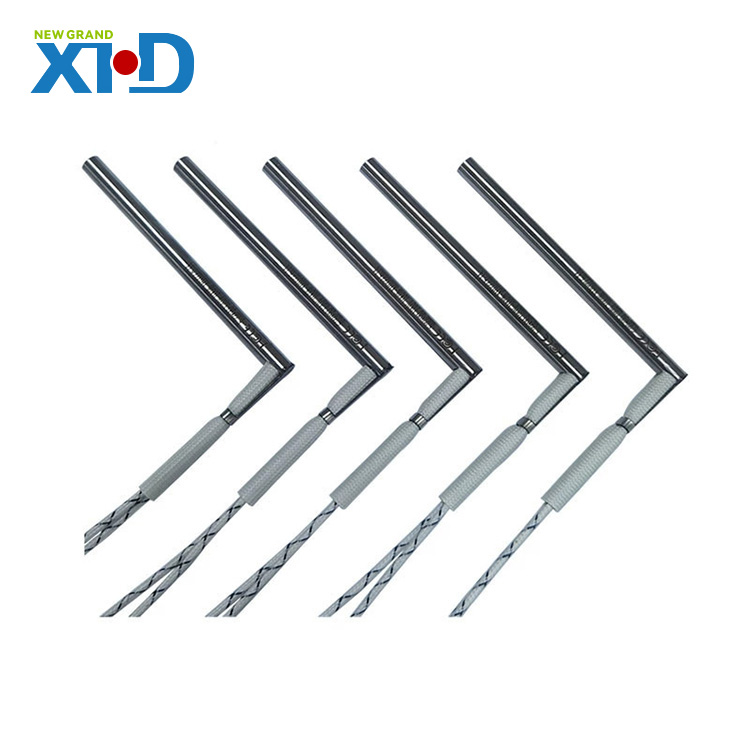

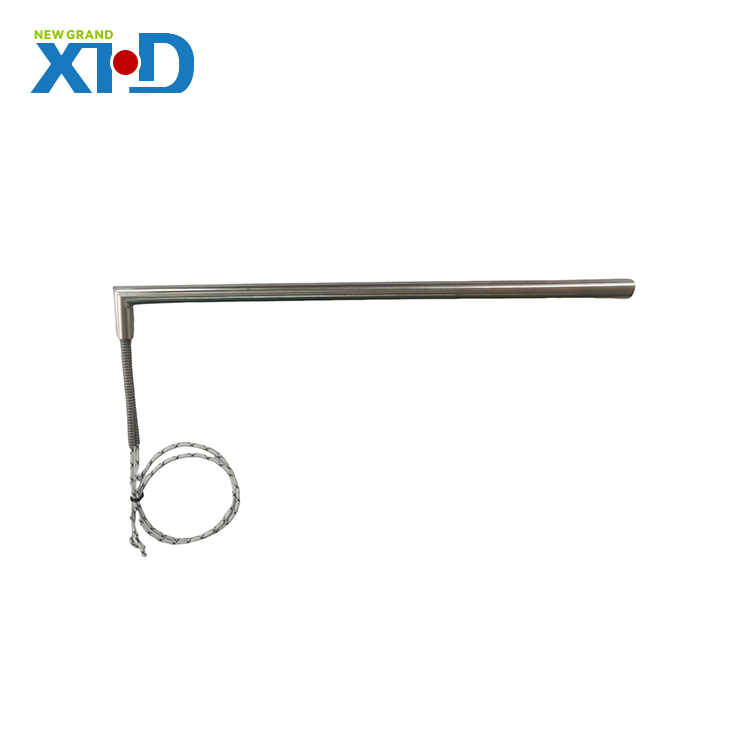

L Type Cartridge Heater is a special heating element named for its unique L-shaped design and single-end heating method. It is mainly used in occasions that require specific shapes and single heat source heating, such as mold heating, mechanical equipment heating, etc. The L-shaped design makes it more flexible in spatial layout and can meet the needs of different application scenarios.
1. Unique L-shaped design: The structure of L Type Cartridge Heater makes the heater more flexible in installation and use, and can adapt to various complex heating environments.
2. Single-end heating: L Type Cartridge Heater has a power access point only at one end, which is suitable for working in heating media where wiring at both ends cannot be performed.
3. Efficient heating: By converting electrical energy into thermal energy, a fast and uniform heating effect is achieved.
4. Excellent materials: The outer shell is usually made of 304 seamless stainless steel, and the internal electric heating alloy wire is made of high-quality nickel-chromium alloy to ensure heating efficiency and safety.
5. Accurate temperature control: When used with temperature sensors and controllers, the heating temperature can be accurately controlled to meet different process requirements.
| Product diameter | Product voltage | Maximum temperature |
| 6mm | 12V | 850℃ |
| 7mm | 24V | 850℃ |
| 8mm | 36V | 850℃ |
| 9mm | 110V | 850℃ |
| 10mm | 220v | 850℃ |
| 6-25mm Customized | 12V-380V Customized | 850℃ |
L Type Cartridge Heater is widely used in various heating fields, including but not limited to:
1. Mold heating: used for preheating and constant temperature control of molds such as punching molds and injection molds to improve production efficiency and product quality.
2. Mechanical equipment heating: used as a heating element in various mechanical equipment to achieve heating and insulation of specific parts.
3. Industrial heating: such as low-melting-point alloy melting equipment such as lead melting furnaces and tin melting furnaces, as well as infrared radiation heating devices.
4. Daily necessities: such as heating elements in household appliances such as electric ovens and rice cookers.
1. Good ventilation: When used in the air, ensure that the installation location is well ventilated to avoid safety hazards caused by excessive surface temperature.
2. Installation in the mold hole: When used in the mold hole, the heating tube must be customized according to the reserved installation hole, and the gap between the heating tube and the mold hole must be strictly controlled to ensure heat conduction efficiency.
3. The effective heating part of the heater must be ensured to be completely in the heating medium;
4. The electrical connector of the L Type Cartridge Heater should be placed outside the insulation layer or the heating room, and the working voltage should not exceed its rated value;
5. The working environment of the heater should have a humidity of no more than 95% and no explosive or corrosive gas.
6. The heater should be stored in a dry place.
