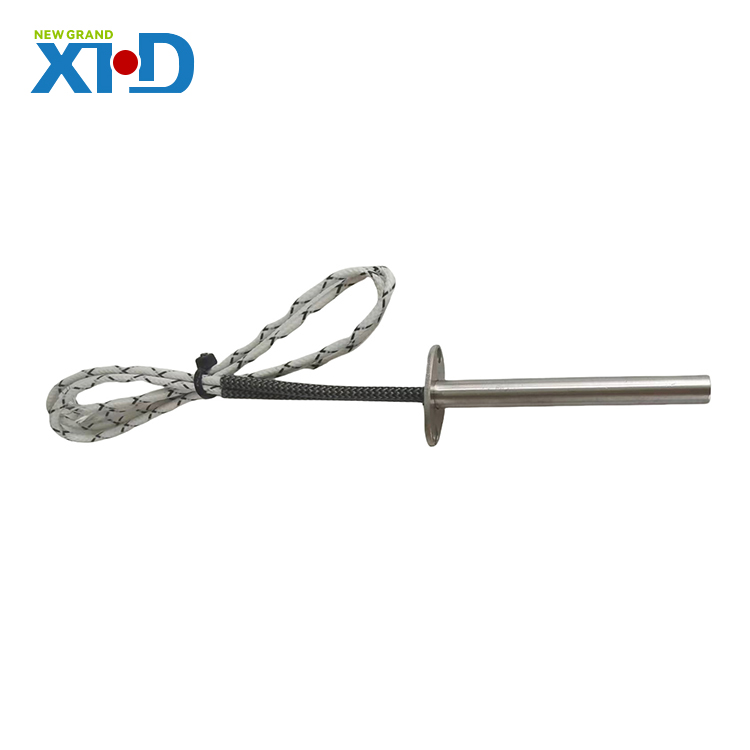

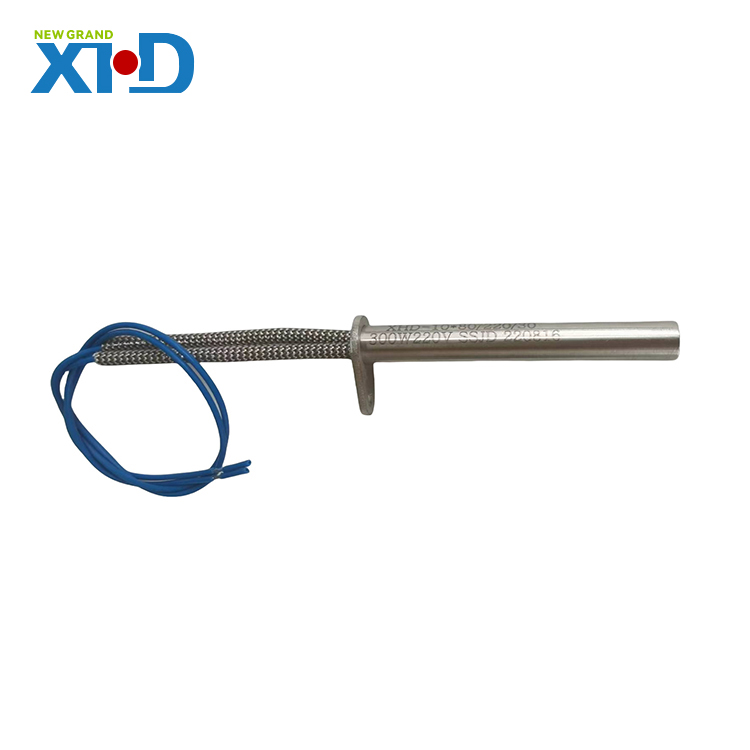

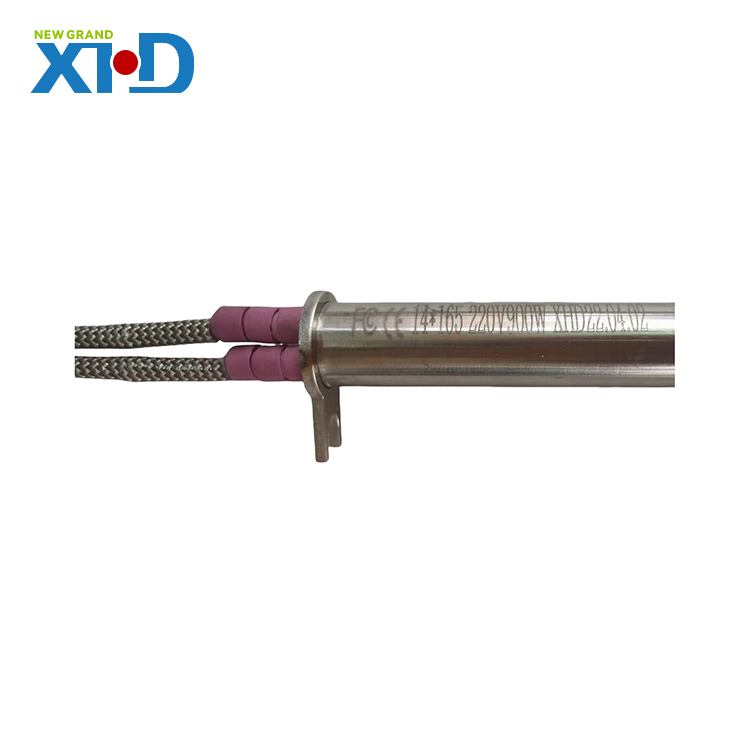

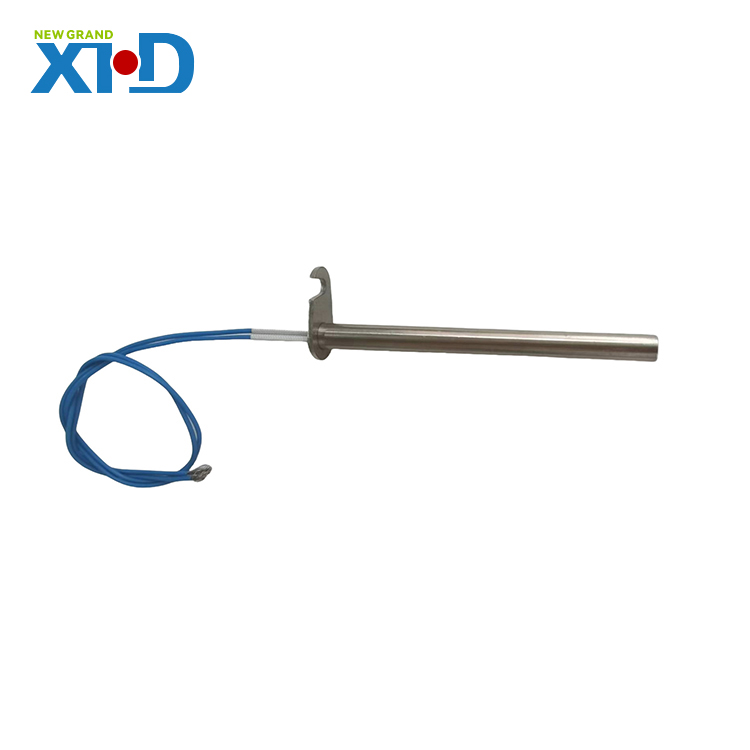

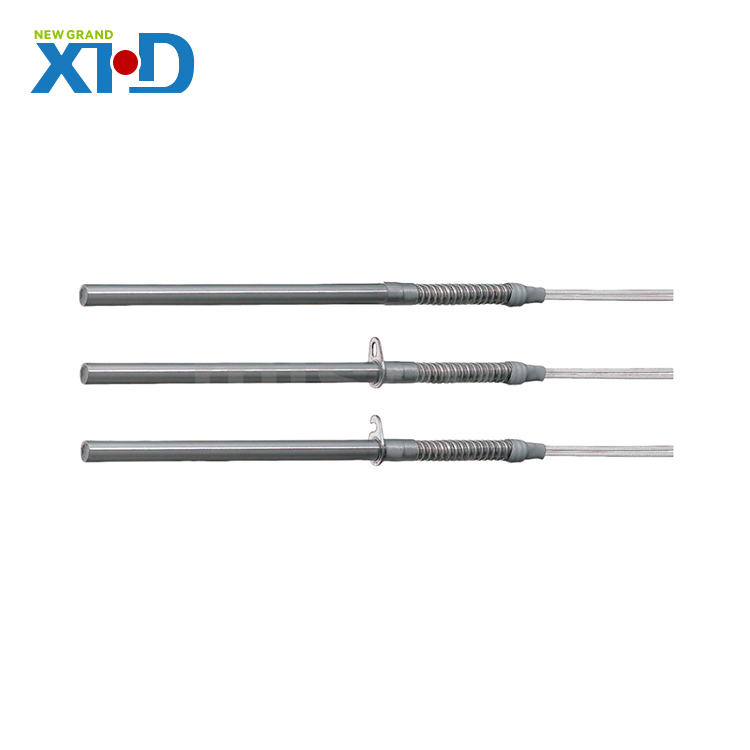

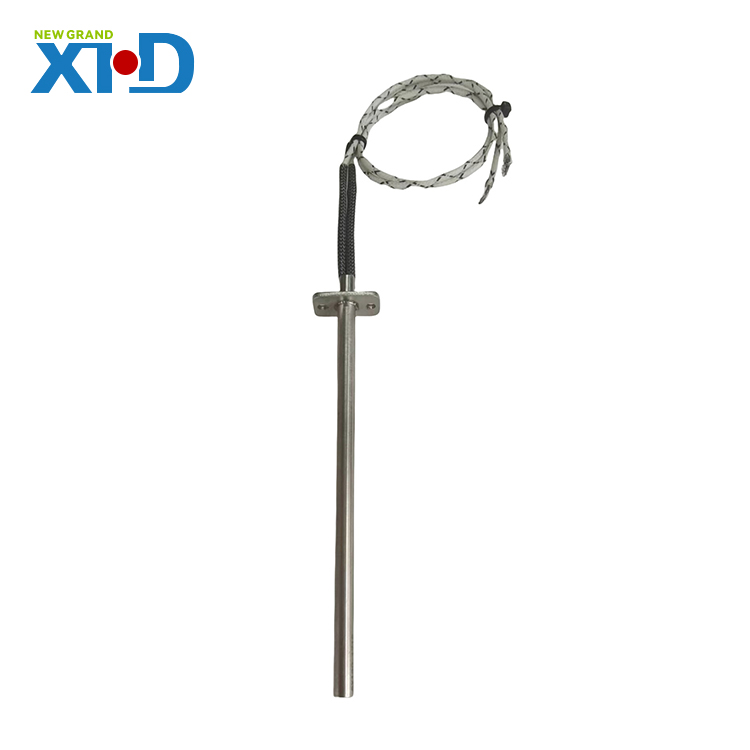

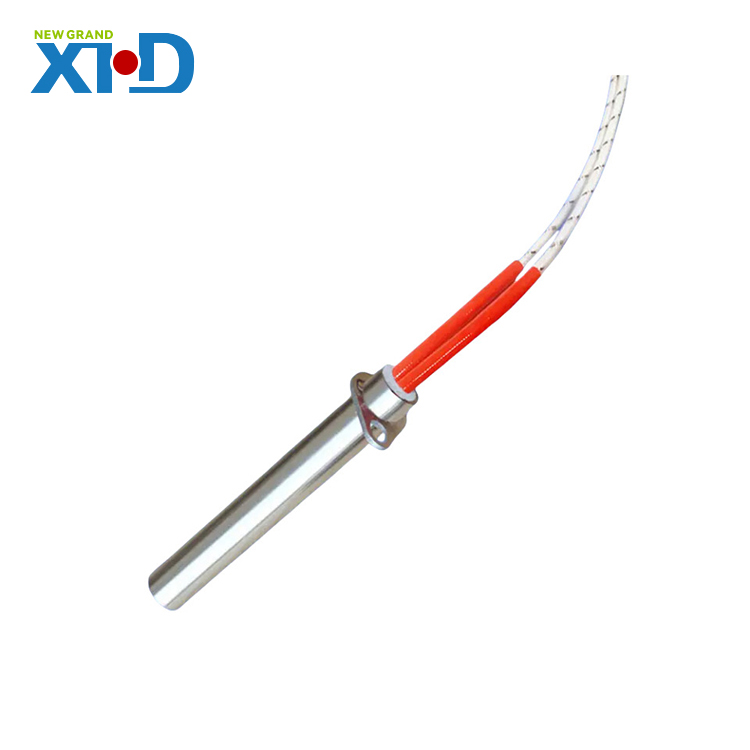

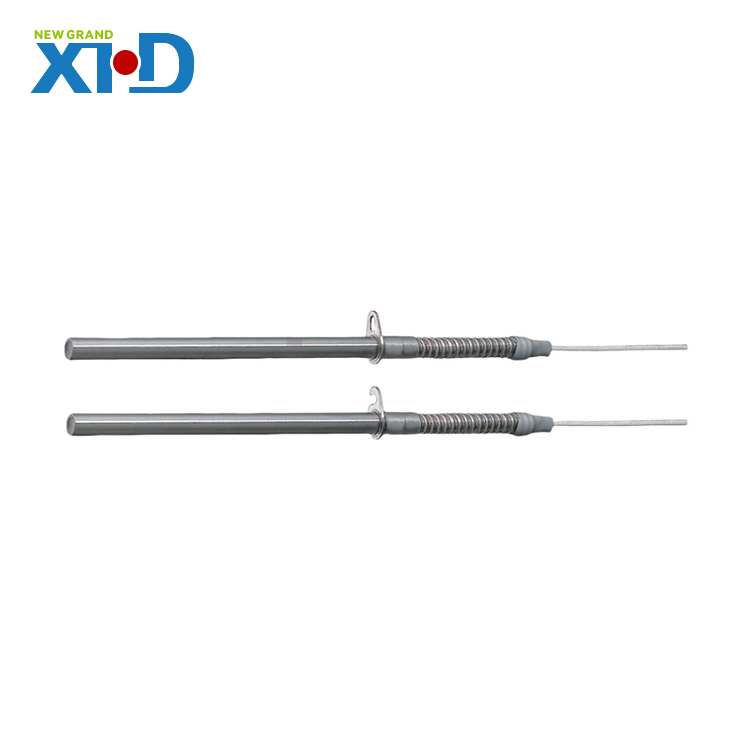

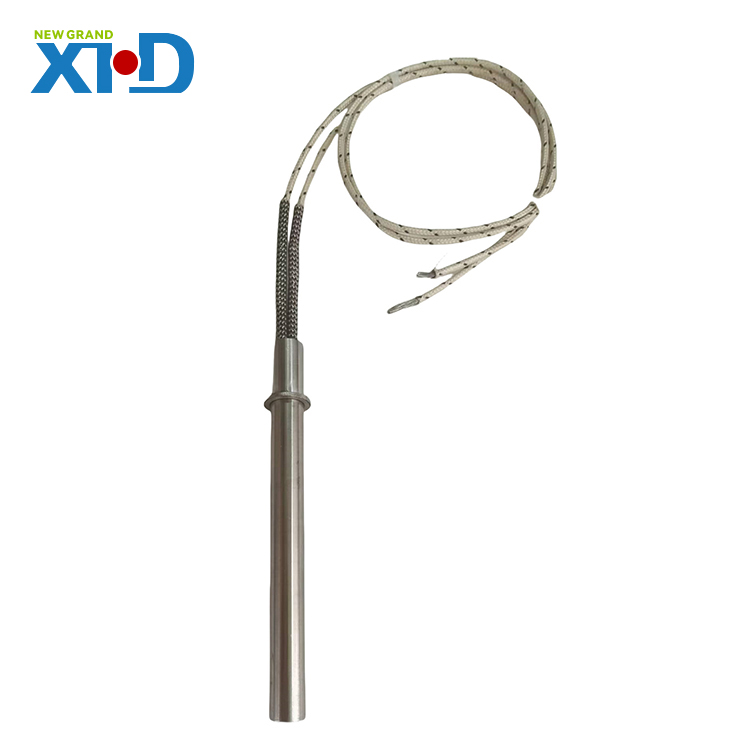

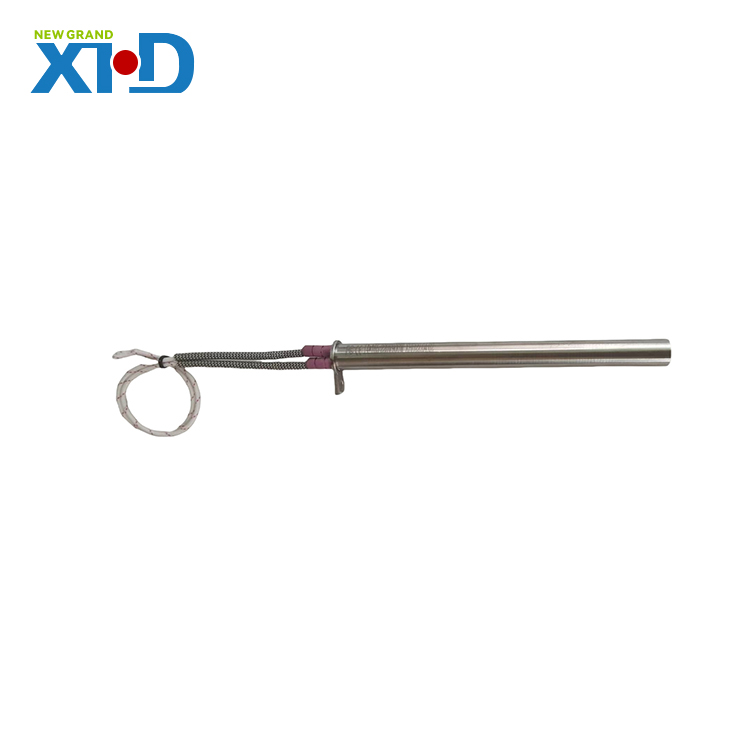

Flange Type Cartridge Heater is a highly efficient heating element designed for specific heating needs. Its unique feature is the design of the flange structure, which makes it more stable when installed and positioned. At the same time, the single-head heating feature also makes it an ideal choice for local heating or where precise temperature control is required. Whether in an industrial production line or a laboratory environment, the Flange Type Cartridge Heater can demonstrate its excellent performance and reliability.
As the professional manufacture, we would like to provide you Flange Type Cartridge Heater. And we will offer you the best after-sale service and timely delivery. All of our products can be customized, so we can meet your requirements on sizes，materials and colors.
1.Flange design:The unique flange structure makes the Flange Type Cartridge Heater more stable during installation and not easy to loosen, ensuring the uniformity and stability of heating.
2.Single-end heating:Only one end is heated, and the other end remains cool.This design makes the energy more concentrated, the heating efficiency is higher, and it also avoids unnecessary heat effects.
3.High-quality materials:Using high-quality stainless steel as the outer shell,filled with high-performance insulation materials and high-temperature resistant heating wires,ensuring the durability and long life of the heating tube.
4.Precise temperature control:With advanced temperature control system,precise temperature adjustment and control can be achieved,meeting the strict requirements of temperature accuracy for different processes.
5.Safe and reliable:With good insulation performance and thermal stability,built-in overheat protection device,effectively prevents dry burning and overheating,ensuring the safety of use.
6. Customized service: Heating tubes with different lengths, diameters, powers and flange specifications can be customized according to the specific needs of customers to meet diverse application requirements.
Shell material: Stainless steel 304, stainless steel 321, stainless steel 310S, Ingel 800, Ingel 840, etc. The specific material can be selected according to the working environment and temperature.
Heating wire: It determines the power of the heating tube and is the core part of the electric heating tube.
Insulation filler: Medium temperature insulation magnesium oxide powder, high temperature insulation magnesium oxide powder, etc.
High temperature lead: Silicone high temperature lead, mica high temperature lead, silicone glass fiber tinned copper wire, mica glass fiber pure nickel wire, etc.
Rated voltage: 12V, 24V, 36V, 48V, 110V, 220V, 380V, etc., which can be customized according to customer needs.
Power setting:Depending on the process, the power setting range is between 5W/cm2 and 20W/cm2.
Tube diameter:3mm-25mm,length can be customized according to customer requirements.
Factory inspection standard:Cold insulation resistance is not less than 50MΩ,Insulation resistance after long-term storage or use after sealing test is not less than 1MΩ
1. Local heating,Mold heating,Hot plate heating, etc. in industrial production lines.
2. Sample heating,Constant temperature control, etc. in laboratory equipment.
3. Local heating treatment,Constant temperature maintenance, etc. in medical equipment.
4. Heating,Insulation, etc. in food processing equipment.
