We firmly believe that perseverance is the key to the success of an enterprise. Continuous satisfaction of the needs of consumers is the basis for the survival of an enterprise, and Wire Protected Simple Heater’s quality is the life of an enterprise. In recently years, the factory has won the sincere love of customers by relying on its sincere reputation, professional and and enthusiastic service to convey the three excellent standard services of high quality materials, preferential prices and excellent service to our customers.
Wire Protected Simple Heater is a highly efficient electric heating element and is widely used in various industrial heating occasions. It integrates the advantages of high power, high thermal efficiency, and fast heat dissipation, and has a specially designed wire protection mechanism to ensure safety and reliability during use. This product is not only suitable for plastic packaging, small mold heating, analytical instruments and other fields, but also widely used in medical equipment, semiconductor equipment, 3D glass hot bending molds and other industries.

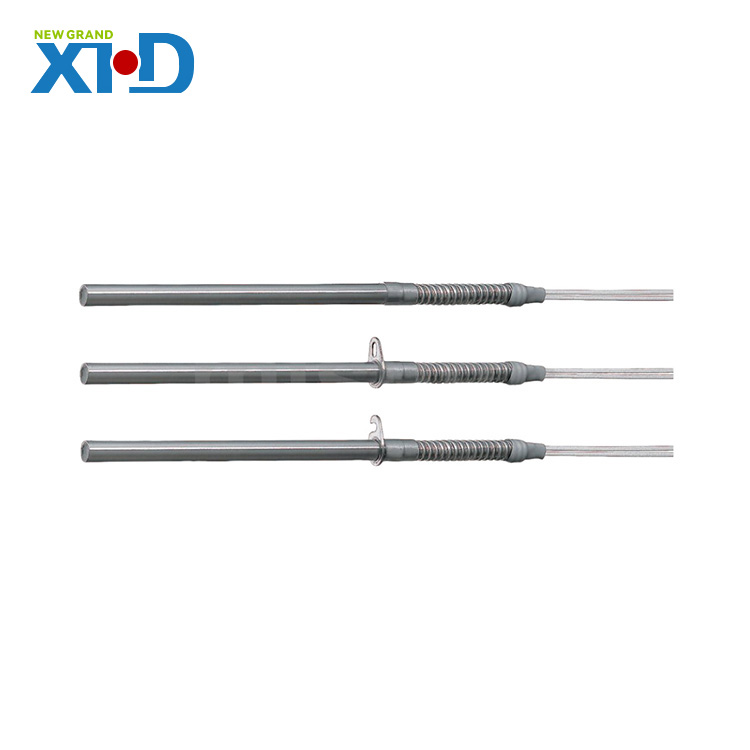

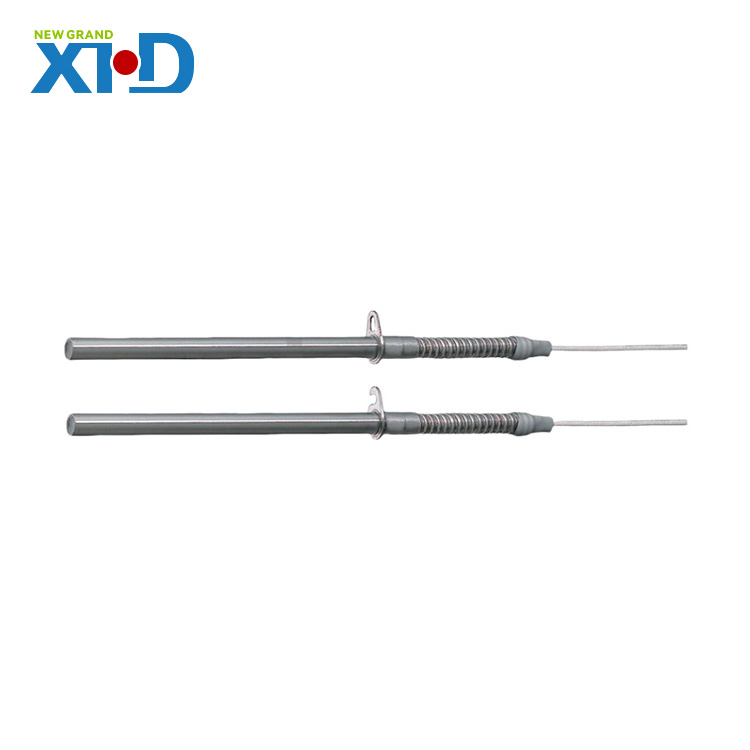

Wire Protected Simple Heater is mainly composed of stainless steel shell, nickel-chromium alloy wire heating wire, high-purity magnesium oxide filler, wire protection sleeve and other parts. The stainless steel shell has good corrosion resistance and high temperature resistance, and the nickel-chromium alloy wire heating wire has excellent electrical conductivity and thermal conductivity. The high-purity magnesium oxide filler not only improves the thermal conductivity efficiency, but also ensures the insulation performance of the product. The wire protection sleeve effectively protects the wire to prevent it from being damaged in high temperature and corrosive environments.
1. High-efficiency heating: High-resistance electric heating alloy wire is used as the heating material, combined with high-purity magnesium oxide as the filler, which has excellent thermal conductivity and insulation performance, ensuring heating efficiency while ensuring product safety.

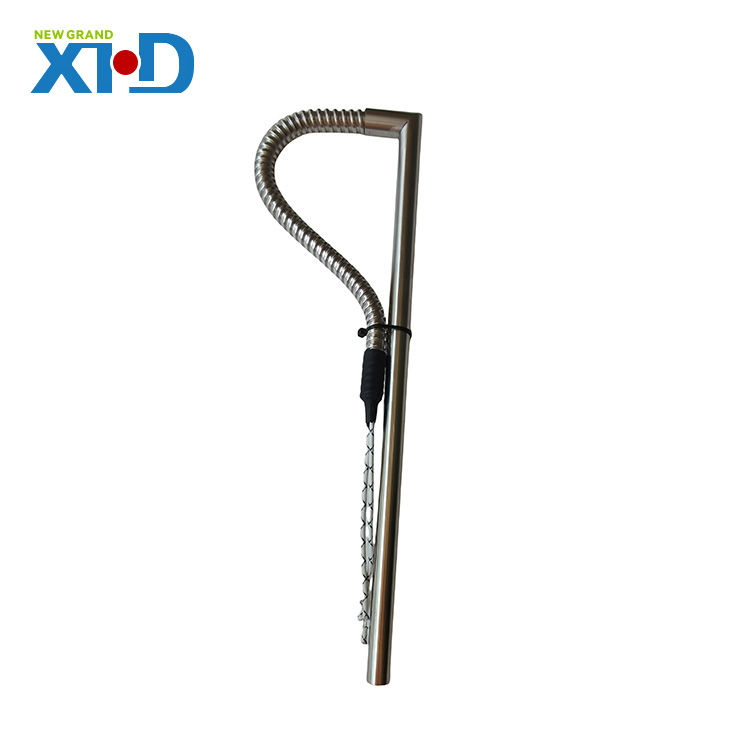

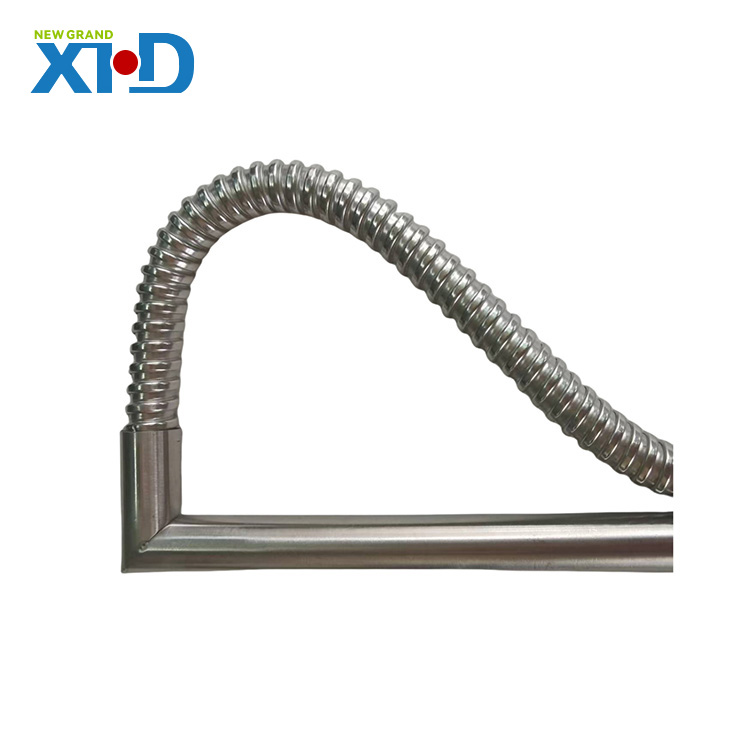

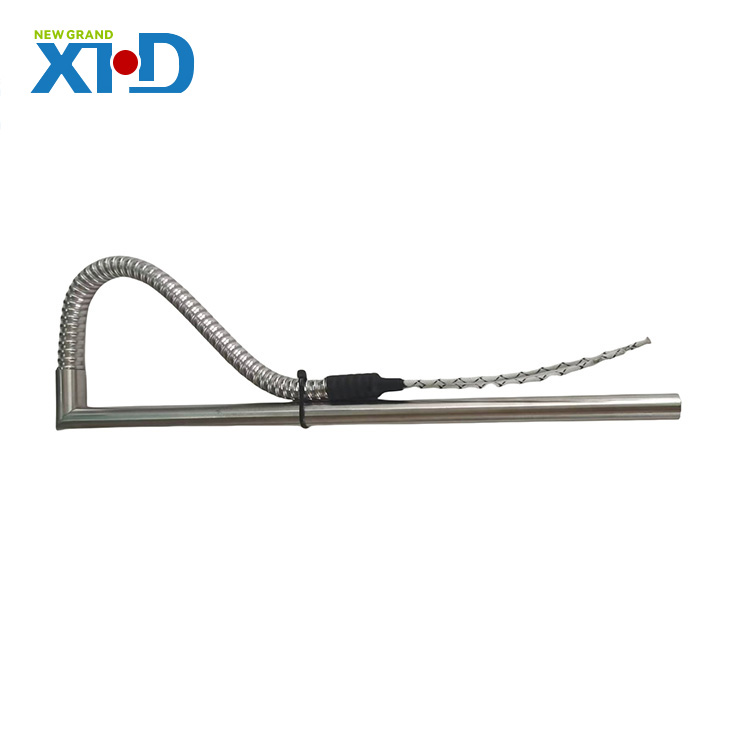

2. Wire protection: The specially designed wire protection mechanism uses high-temperature resistant and corrosion-resistant materials (such as silicone fiberglass sleeves, metal textile hoses, metal corrugated hoses, etc.) to effectively prevent wire damage in high-temperature and corrosive environments and extend the service life of the product.
3. Safe and reliable: The effective heating part of the electric heating tube must be ensured to be completely in the heating medium, and the electrical connector of the electric heating element must be placed outside the insulation layer and the heating chamber, and the outer shell is effectively grounded to ensure safety during use.
4. Flexible customization: Parameters such as diameter, length, power, and voltage can be customized according to customer needs to meet the specific requirements of different application scenarios.
-Size requirements: The diameter ranges from micro 3mm to large 25mm, and the length can be customized according to customer needs, up to 1000mm.
-Voltage: Supports multiple voltage customization, including 460V, 380V, 240V, 220V, 110V, 36V, 24V, 12V, etc.
-Power: The power density ranges from 2.5-20W/cm², which is specifically designed according to the heating medium and size.
-Wire protection: Teflon, silicone glass fiber, high-temperature glass fiber, ceramic beads and other high-temperature resistant materials are used to protect the wires to ensure that the wires are not damaged in high temperature environments.
-Insulation performance: The cold insulation resistance is not less than 50MΩ during factory inspection, and the insulation resistance is not less than 1MΩ after sealing test and long-term storage or use, and the withstand voltage value is as high as 1800V/S.
-Plastic packaging and molding:Applicable to plastic sealing machines,continuous automatic sealing machines and other equipment.
-Medical equipment:Used for heating components in medical equipment,ensuring the stability and safety of equipment operation.
-Semiconductor equipment:Provide a stable heating environment during semiconductor manufacturing.
-3D glass hot bending mold:Provide efficient heating solutions for 3D glass hot bending processes.
-Other industrial applications:Including chemical,metallurgical,food machinery and other fields.
1. The operating voltage shall not exceed 10% of the rated voltage.
2. The electric heating tube and the mold are closely matched, and it is strictly forbidden to expose it to cause dry burning.
3. When not in use for a long time, it should be stored in a dry place to avoid damage to the packaging bag and moisture on the heating rod.
4. During installation and use, relevant safety operating procedures should be followed to ensure the safety of personnel and equipment.
