Introduction to Wire Protected Cartridge Heater
product overview

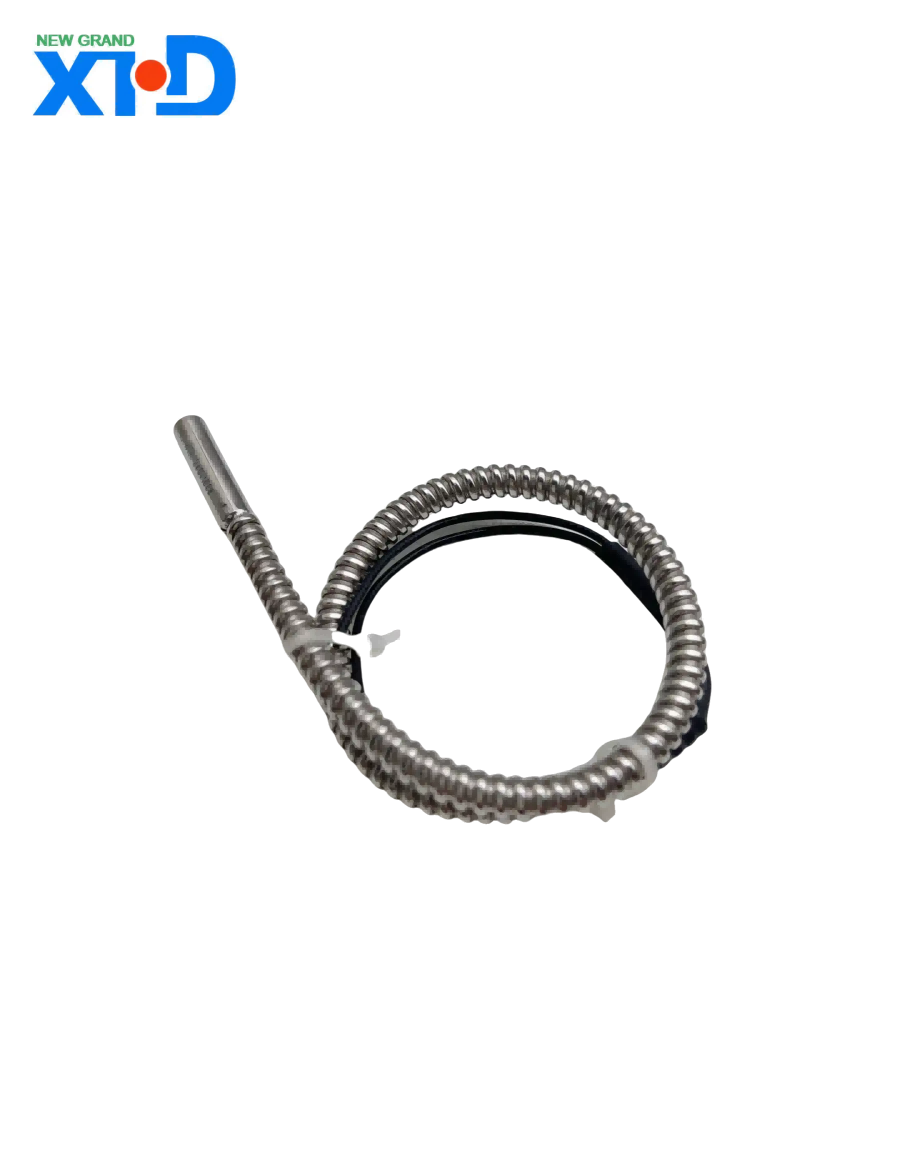

Wire Protected Cartridge Heater is an efficient and durable electric heating element designed for industrial and civilian scenarios that require precise heating and limited installation space. Its unique wire protection structure significantly enhances the safety and service life of the product, and is suitable for heating various media such as liquids, gases, molds, mechanical components, etc.
Product Features
1. Dual protection design for wires
-Using high-temperature resistant insulation materials to wrap the wires, combined with metal braided layers or sheaths, effectively prevents mechanical wear, chemical corrosion, and high-temperature oxidation, ensuring long-term stable operation.
-Terminal sealing treatment, moisture-proof and dustproof, suitable for harsh environments (such as damp and oily environments).
2. Efficient heating performance
-High quality resistance wires (such as nickel chromium alloy) and high-purity magnesium oxide powder are used for filling, with a thermal efficiency of over 95%, rapid and uniform temperature rise.
-The power density can be customized (conventional range 20W/cm ²~60W/cm ²) to meet different heating needs.
3. Durable and sturdy structure
-The shell material can be selected from stainless steel 304/316, titanium alloy, copper, etc. It is corrosion-resistant, high-pressure resistant, and suitable for acid-base environments or liquid heating.

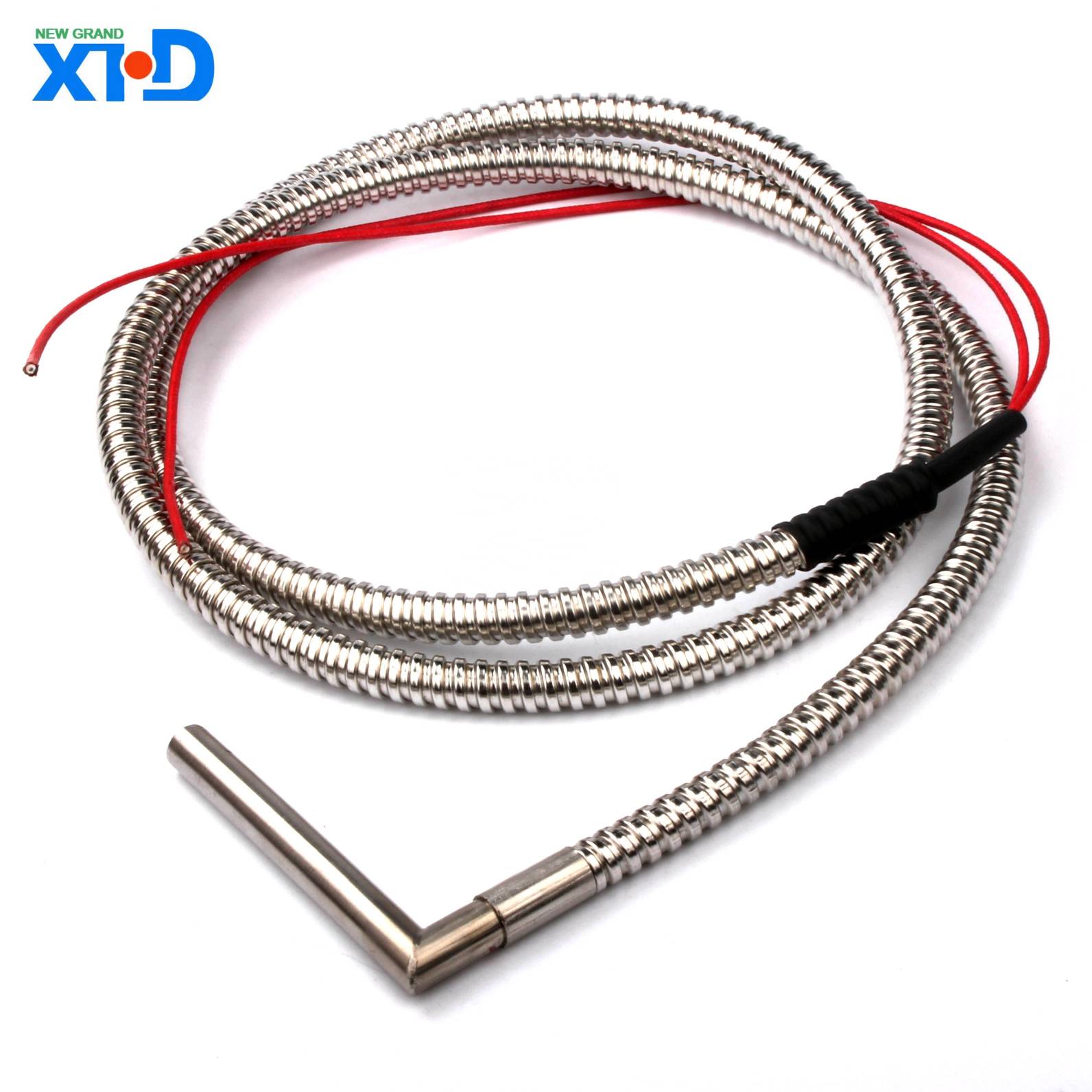

-Single ended outlet design, flexible installation, suitable for embedding in molds, pipelines, or enclosed equipment.
4. Safe and reliable
-Compliant with international electrical standards such as CE and RoHS, with built-in overheat protection options to prevent dry burning damage.
-Insulation resistance>100M Ω, withstand voltage strength up to 1500V/60s, ensuring electrical safety.
5. Customized services

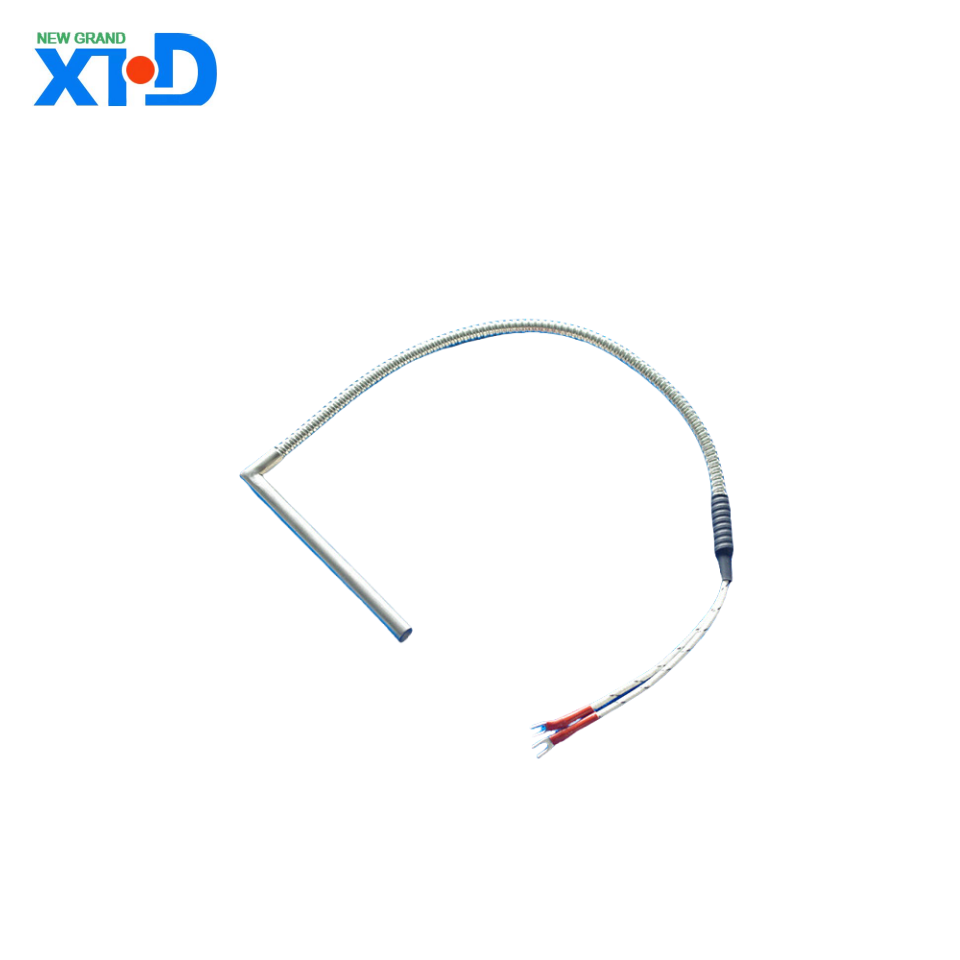

-Support non-standard customization, including shape (straight rod, L-shaped, irregular), voltage (12V~440V), power (100W~3000W), length and wiring method (lead length, terminal type).
Typical application areas
-Industrial equipment: Injection molding machine mold heating, packaging machinery, semiconductor manufacturing equipment.
-Fluid heating: anti freezing of water tanks, oil tanks, pipelines, and heating of chemical liquids.
-Household appliances: coffee machines, steam generators, medical disinfection equipment.
-Laboratory equipment: constant temperature box, drying device.
Technical Parameters (Example of Conventional Models)
|Parameter Item | Specification Range|
|----------------|-------------------|
|Rated voltage | 110V~440V|
|Power range | 100W~3000W|
|Temperature resistance range | -20 ℃~800 ℃|
|Sheath material | Stainless steel, titanium alloy, etc|
|Protection level | IP65 (optional higher)
Reasons for choosing us
-Professional manufacturing: With 20 years of experience in producing electric heating tubes, strict quality control, and ISO9001 certification.
-Quick response: Provide technical consultation, selection guidance, and 100 hour sample delivery (standard version).
-After sales guarantee: 12-month warranty, lifetime maintenance support.
