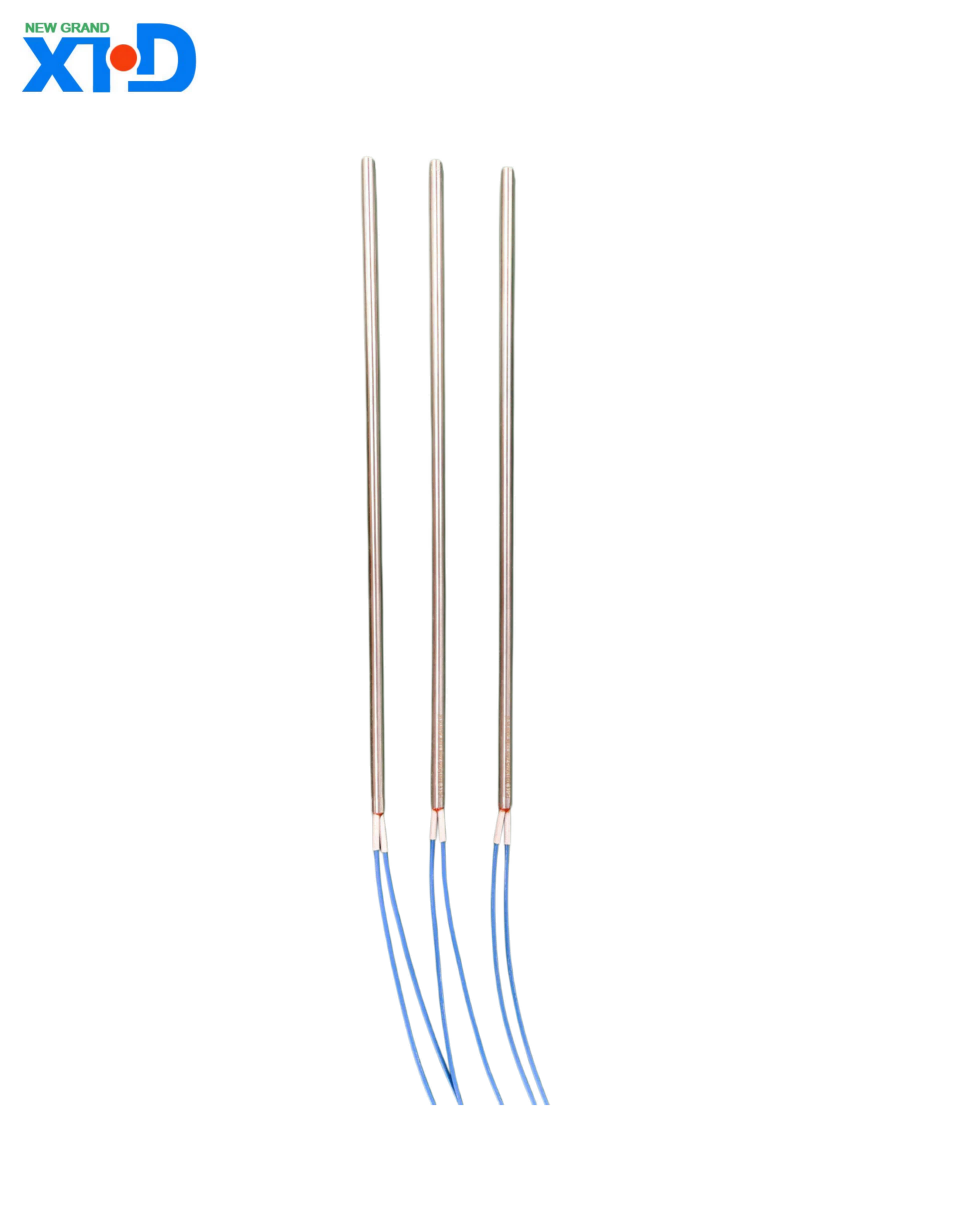

Stranded Wire Cartridge Heater, also known as cartridge heater or single-ended heating tube, is a special form of electric heating tube. It is achieved by evenly arranging high-resistance electric heating alloy wire (usually nickel-chromium alloy or copper-nickel alloy) in the form of stranded wire in a metal tube, and filling it with high thermal conductivity and high insulation material (such as high-purity magnesium oxide powder) around it to achieve efficient conversion of electrical energy to thermal energy. This design not only ensures high power output of the heating tube, but also improves thermal efficiency and heat dissipation performance.
1. Body: Usually made of stainless steel (such as 304, 321, 310S, etc.), with good corrosion resistance and high temperature resistance, and can conduct heat quickly and evenly.
2. Heating wire: High-resistance electric heating alloy wire in the form of stranded wire, with good electrical conductivity, thermal conductivity and oxidation resistance. The specifications, length and width of the heating wire can be customized according to specific heating needs.
3. Insulating filler: Using high-purity magnesium oxide powder as filler, it not only has good insulation properties, but also can effectively improve the efficiency of heat conduction.
1. Shell material: Stainless steel 304, stainless steel 321, stainless steel 310S, etc.
2. Heating wire material: nickel-chromium alloy wire
3. Insulating filler: medium or high temperature insulating magnesium oxide powder.
4. Rated voltage: 12V, 24V, 36V, 48V, 110V, 220V, 380V, etc.
5. Power setting: According to the heating medium and size design, the domestic process can reach 5W/cm², and the imported process is higher.
6. Pipe diameter: Φ3mm-25mm, to meet different application requirements.
7. Length: It can be customized according to customer requirements, with a wide range of lengths.
8. Surface temperature: The optional range is 0-800℃, which is suitable for a variety of heating scenarios.
1. High power and high thermal efficiency: The stranded wire design makes the heating wire evenly distributed, which improves the heating efficiency and power output.
2. Fast heat dissipation: Good thermal conductive materials and design enable heat to be dissipated quickly to avoid local overheating.
3. Safe and reliable: Excellent insulation performance and high temperature resistant materials ensure the safe operation of the heating tube.
4. Flexible customization: Heating tubes of different specifications, power and length can be customized according to customer needs.
5. Wide application: Suitable for a variety of heating scenarios such as plastic packaging, mold heating, analytical instruments, cigarette industry, shoemaking industry, chemical industry, etc.
1. Installation: Make sure that the effective heating part of the electric heating tube is completely immersed in the heating medium to avoid dry burning.
2. Wiring: The wiring head of the electric heating element should be placed outside the insulation layer and the heating chamber, and the working voltage shall not exceed 10% of the rated value.
3. Environment: The humidity of the working environment of the electric heating element shall not exceed 95%, and there shall be no explosive or corrosive gases.
4. Storage: The electric heating element should be stored in a dry place to avoid moisture.
