You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Side Outlet Type Cartridge Heater. We look forward to cooperating with you. We exported our products to more than 30 countries with strong technical support, good quality and services.

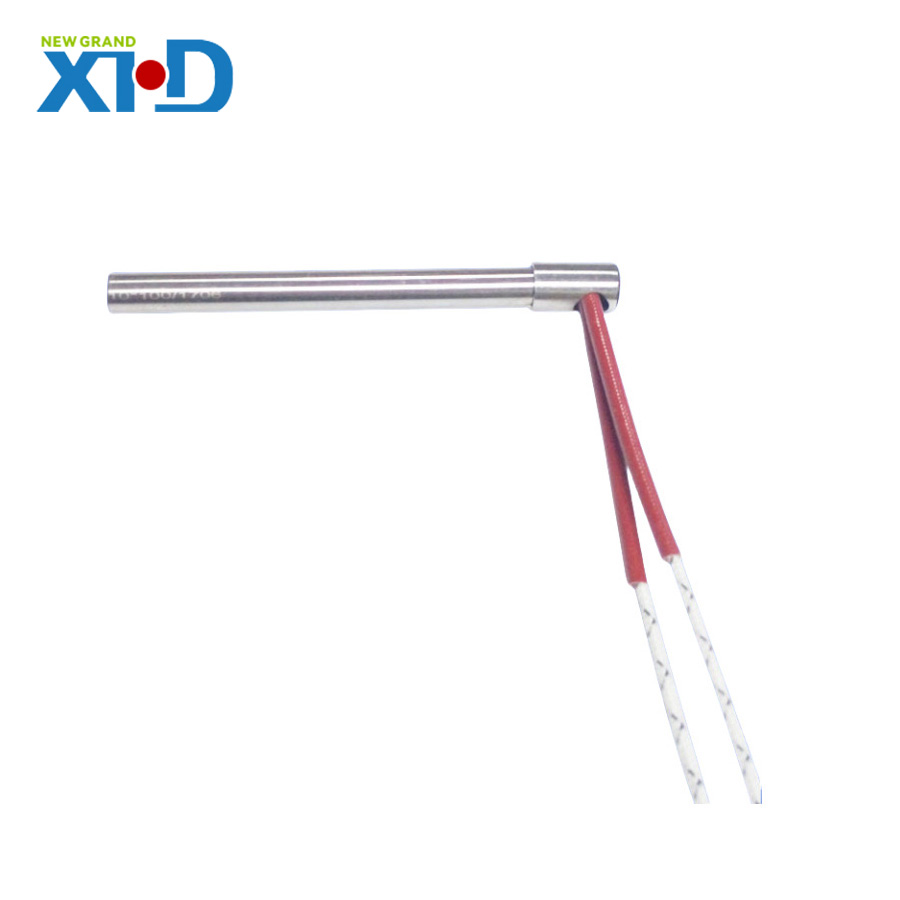

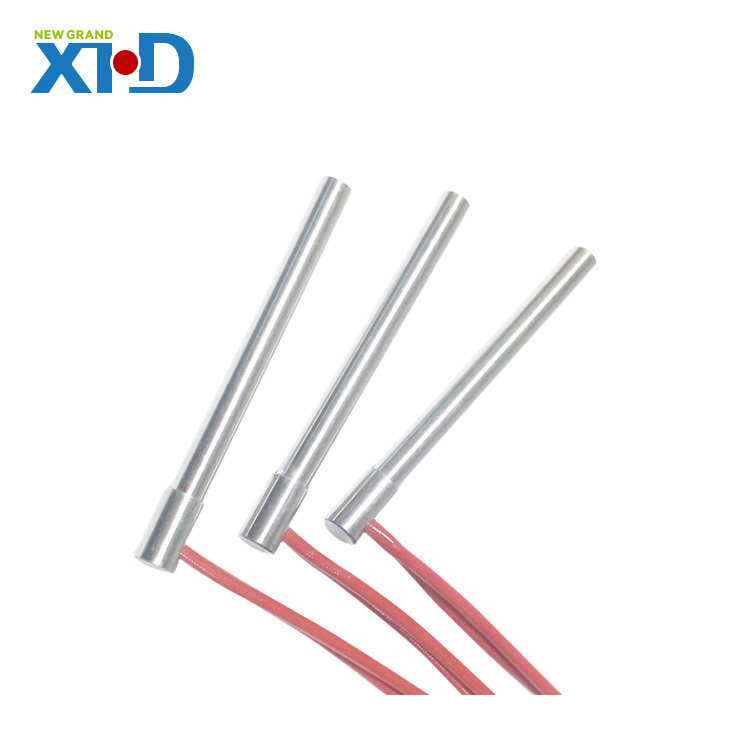

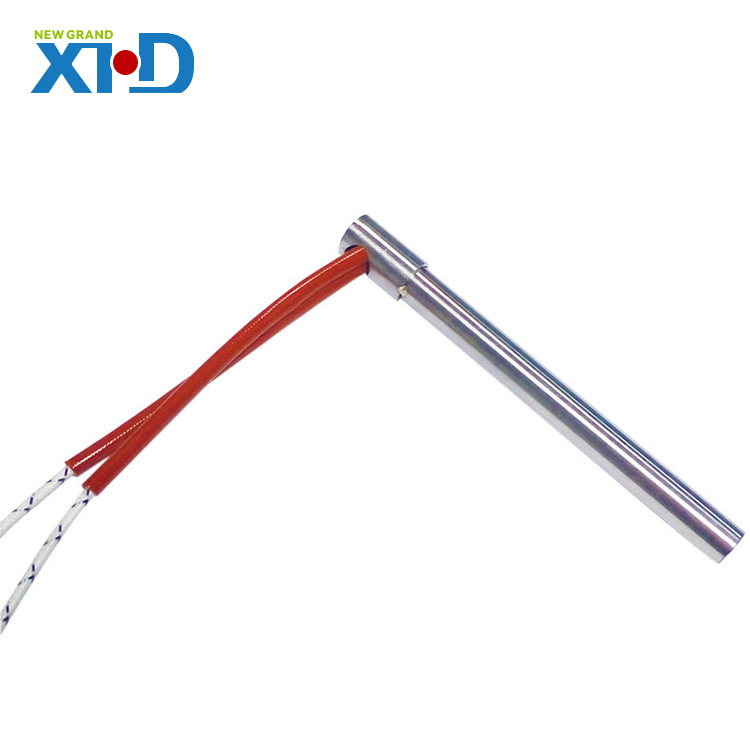

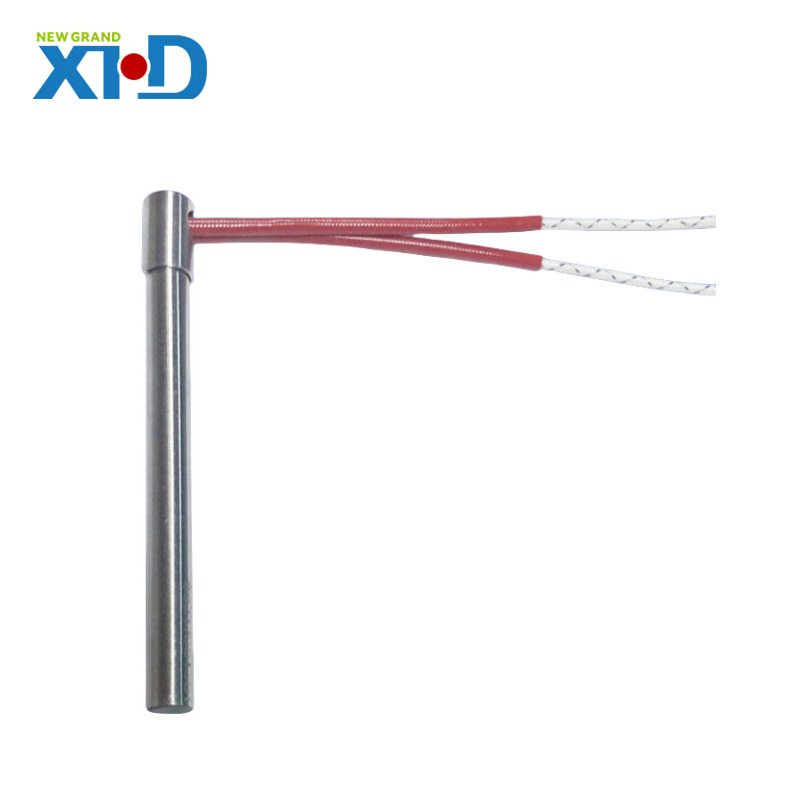

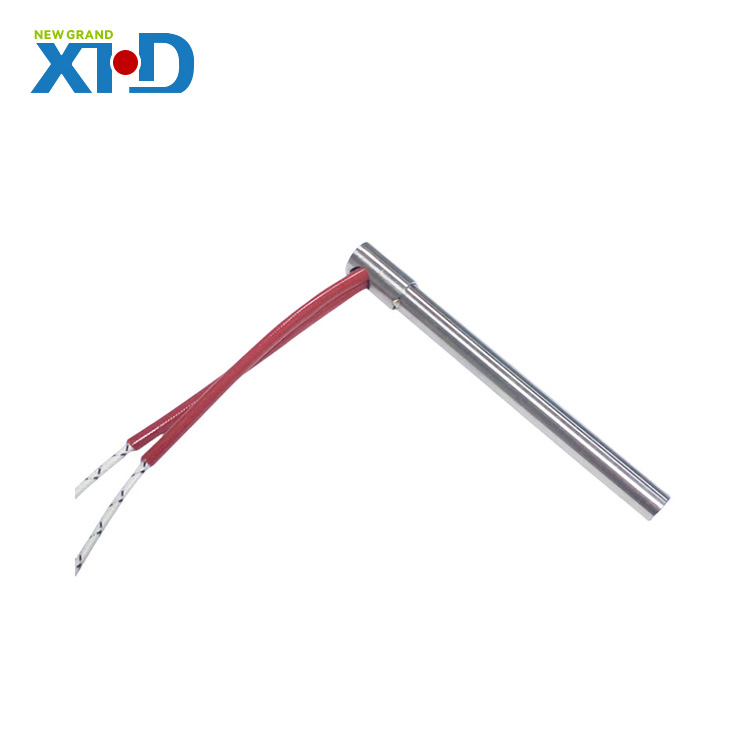

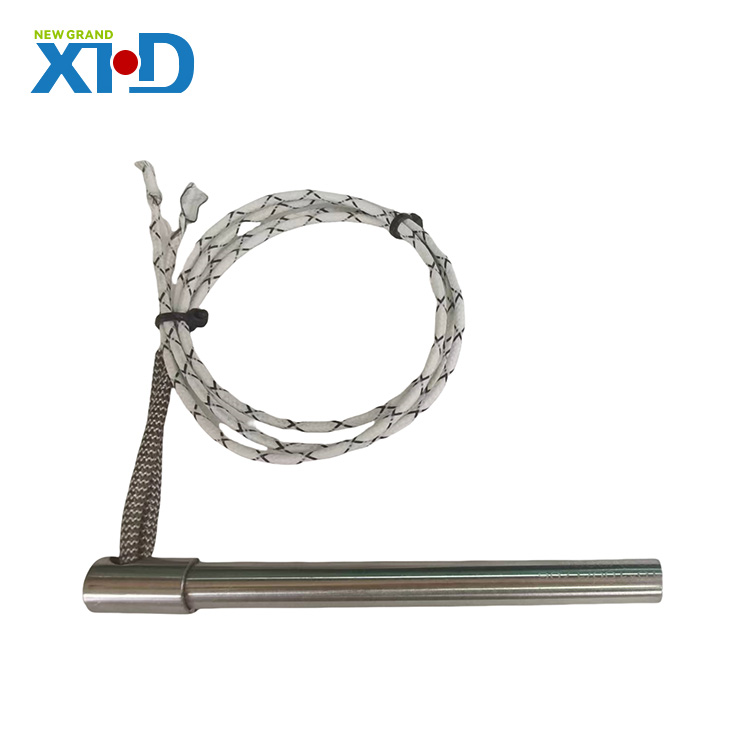

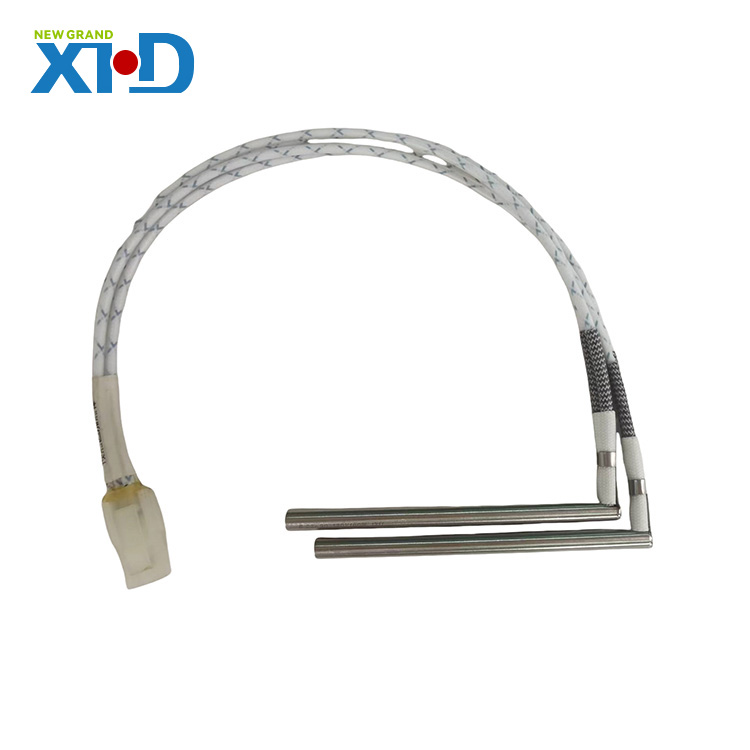

Side Outlet Type Cartridge Heater is a specially designed electric heating element, the outlet part of which is located on the side of the heating tube, which makes the heating tube more flexible and convenient to install and use. At the same time, the single-head heating feature makes it particularly suitable for occasions that require local heating or precise temperature control. Whether in industrial production lines, laboratory equipment or household appliances, Side Outlet Type Cartridge Heater can provide stable and reliable heating effects.
1. Side outlet design: The outlet part is located on the side of the heating tube, which is convenient for installation and wiring, and adapts to various space restrictions.
2. Single-head heating: Side Outlet Type Cartridge Heater only heats up at one end, and the other end remains cool, with concentrated energy and high heating efficiency.
3. High-quality materials: The outer shell is made of high-quality stainless steel, and the interior is filled with high-performance insulation materials and high-temperature resistant heating wires.
4. Precise temperature control: With advanced temperature control system, precise temperature regulation and control can be achieved.
5. Safe and reliable: It has good insulation performance and thermal stability, and is safe and reliable to use.
6. Long-lasting and durable: High-quality materials and processes ensure the long service life of the cartridge heater.
- Shell material: Stainless steel 304, stainless steel 321, titanium alloy, etc., which can be selected according to the working environment and temperature.
- Heating wire material: High-quality nickel-chromium alloy or iron-chromium-aluminum alloy to ensure heating effect and stability.
- Insulation filler: High-temperature insulating magnesium oxide powder to ensure the insulation performance of the heating tube at high temperature.
- Side outlet: High-temperature resistant and corrosion-resistant alloy wire is used to ensure the reliability and safety of the outlet part.
- Rated voltage: 12V, 24V, 36V, 48V, 110V, 220V, 380V, etc., which can be customized according to customer needs.
-Power range: 100W-3000W, the specific power can be customized according to customer requirements and heating tube size.
-Tube diameter: It can be customized according to customer requirements, and common specifications are Φ6mm-Φ25mm.
-Length: It can be customized according to customer requirements to meet different heating needs.
-Factory inspection standard: The cold insulation resistance is not less than 50MΩ, and the insulation resistance after long-term storage or use after the sealing test is not less than 1MΩ.
1. Local heating, mold heating, hot plate heating, etc. in industrial production lines.
2. Sample heating, constant temperature control, etc. in laboratory equipment.
3. Heating equipment such as electric kettles, electric cups, and electric ovens in household appliances.
