With the rapid development of industrial automation and Internet of Things technology, temperature sensors, as core devices for sensing environmental parameters, continue to deepen their technology iteration and market application. There are four main types of temperature sensors in the current market, each with its own technical characteristics and application advantages.
1. Thermocouple: the cornerstone of industrial temperature measurement

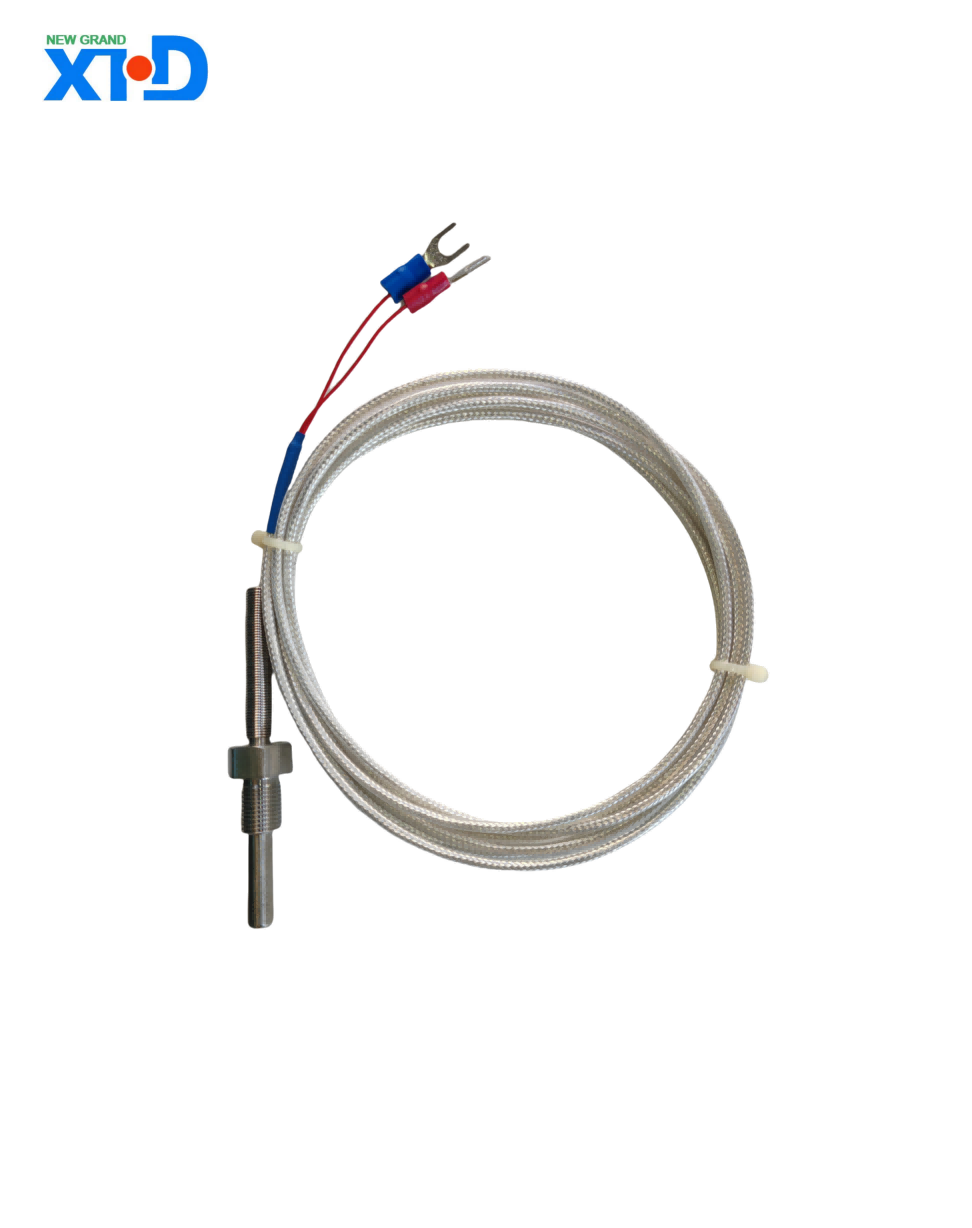

Thermocouples measure temperature based on the Seebeck effect, and reflect temperature changes through the thermoelectric potential difference formed by the contact of two different metal conductors. Its structure consists of a thermoelectrode, an insulating sleeve and a junction box, and supports wide temperature range measurements from -200℃ to 2800℃. In industrial scenarios, thermocouples are widely used in molten metal temperature measurement and high-temperature furnace monitoring in the fields of steel smelting, petrochemicals, etc. due to their simple structure, rapid response and high temperature resistance. Typical applications such as K-type thermocouples can achieve a measurement accuracy of ±1.5℃ in the range of -200℃ to 1300℃. Its output thermoelectric potential is approximately linear with temperature, and the cold end compensation technology can significantly improve the measurement stability.
2. Resistance Temperature Detector (RTD): A Model of High-Precision Linear Temperature Measurement
RTD uses the linear relationship between resistance and temperature of metals such as platinum, nickel, and copper to measure temperature. Among them, platinum resistance (PT100/PT1000) has become the first choice in fields such as meteorological monitoring and medical equipment due to its excellent stability and interchangeability. Taking PT100 as an example, its resistance is 100Ω at 0℃, and the resistance changes by 0.385Ω for every 1℃ change in temperature. Through constant current source excitation and four-wire measurement, the wire resistance error can be eliminated, and the measurement accuracy of ±0.1℃ in the range of -200℃ to 850℃ can be achieved. In the biopharmaceutical industry, RTD is used for temperature closed-loop control of equipment such as fermenters and sterilizers to ensure the accuracy and stability of production parameters.
3. Thermistor: A balance between sensitive response and cost optimization
Thermistors are divided into positive temperature coefficient (PTC) and negative temperature coefficient (NTC) based on the resistivity-temperature characteristics of semiconductor materials. NTC thermistors can achieve high-sensitivity temperature measurement in the range of -50℃ to 300℃ due to the characteristic that the resistance decreases with the increase of temperature. Typical applications include overheat protection of consumer electronic products and automotive battery management systems. Its resistance-temperature curve is nonlinear and needs to be corrected by the Steinhart-Hart equation. PTC thermistors are widely used in power adapters, motor drives and other scenarios due to their overcurrent protection characteristics. When the temperature exceeds the threshold, the resistance rises sharply and the circuit is cut off to achieve safety protection.
4. Integrated Circuit (IC) Temperature Sensor: Fusion of Miniaturization and Intelligence
IC temperature sensors integrate temperature sensitive elements and signal processing circuits into a single chip, and measure temperature through the voltage-temperature characteristics of the PN junction. Analog output types (such as TMP36) provide a linear voltage output of 10mV/℃ in the range of -40℃ to 125℃, and digital output types (such as DS18B20) achieve ±0.5℃ digital temperature reading through a single bus interface. Its small size and low power consumption make it a standard sensor for wearable devices and IoT terminals. For example, DS18B20 can monitor the ambient temperature in real time in the smart home system, and upload the data to the cloud through the Zigbee protocol, supporting remote control and energy consumption optimization.
Technology evolution and market trends
With the integration of MEMS technology and AI algorithms, temperature sensors are moving towards miniaturization and intelligence. Thin-film thermocouples and nano RTD technologies break through the size limitations of traditional sensors, while machine learning algorithms significantly improve measurement accuracy by compensating for nonlinear errors and drifts. In the field of new energy vehicles, integrated temperature sensor arrays can monitor the temperature of battery modules in real time and achieve millisecond-level response with the thermal management system; in the field of medical health, flexible IC temperature sensor patches can be attached to the surface of the human body to achieve continuous non-invasive temperature monitoring.
In the future, with the advancement of Industry 4.0 and carbon neutrality goals, temperature sensors will play a more critical role in smart manufacturing, energy management and other fields. Material innovation, process upgrades and algorithm optimization will continue to promote sensor performance, while the popularization of 5G and edge computing technologies will accelerate the real-time transmission and intelligent analysis of temperature data, providing solid support for the digital transformation of various industries.
