We can provide comprehensive customization services, including setting the voltage and power of the heating element, selecting the sheath material, adjusting the product temperature and ventilation level in the application, air flow rate and other parameters to meet customers' specific production needs for Hot Runner Coil Heater. We look forward to working with you to jointly promote the innovative development of hot runner technology.

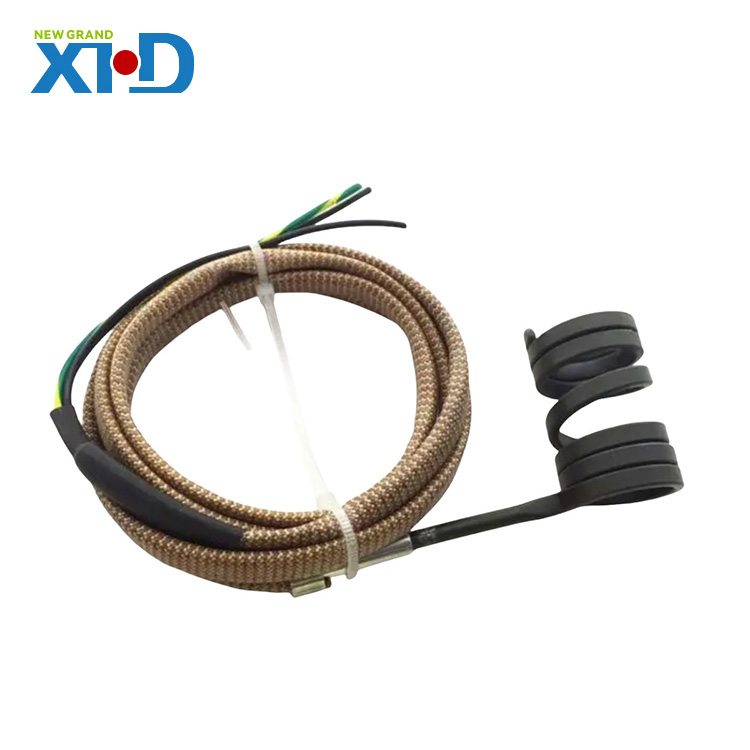

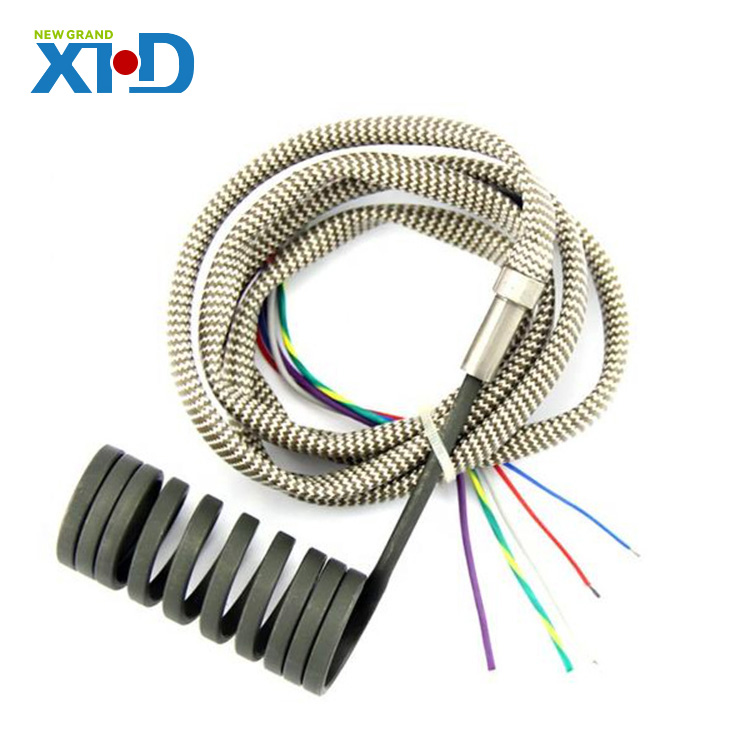

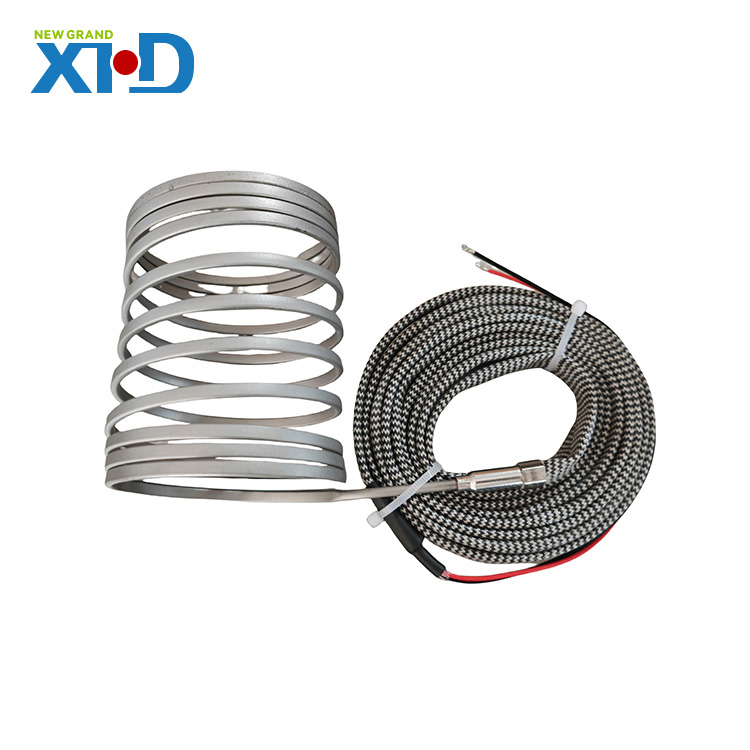

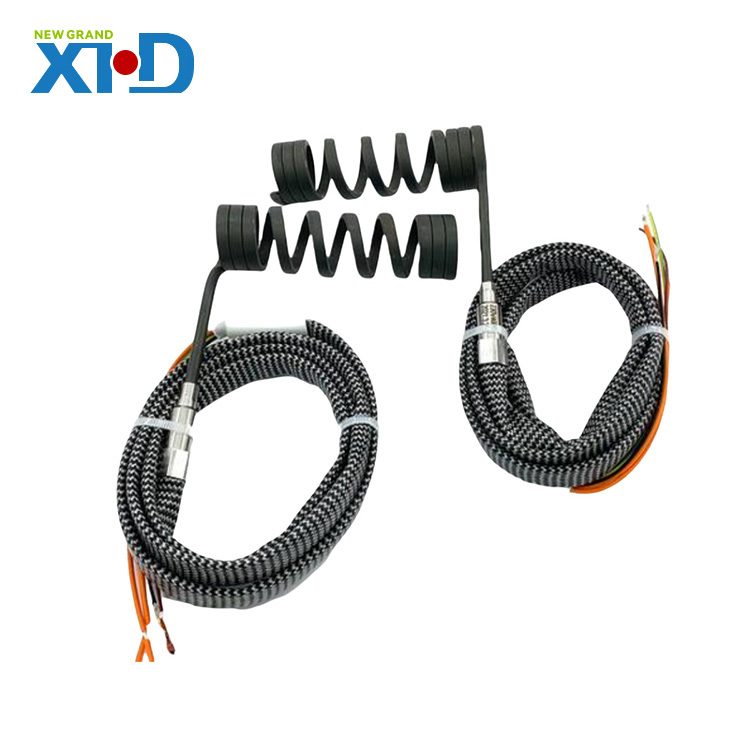

Hot Runner Coil Heater is an electric heating element designed for plastic injection molds and hot runner systems. It is widely used in the plastics and packaging industries to efficiently heat parts of various shapes and geometries. This product has become a key component in hot runner technology with its excellent heating performance, flexible installation method and reliable temperature control system.
1. Efficient heating: Hot Runner Coil Heater uses imported heating wire, combined with advanced manufacturing technology, which significantly improves the heating effect and service life, while improving injection molding production efficiency.
2. Uniform heating: The design is optimized to ensure uniform heating, the heating coil is not easy to deform, and the mold temperature consistency is guaranteed.
3. High temperature resistant material: Imported high temperature wire and high-quality high temperature snake skin sleeve are used, with excellent high temperature resistance to avoid damage to the heating coil lead in high temperature environment.
4. Flexible customization: Provide a variety of specifications and sizes to choose from, support high-power non-standard customization, and meet the diverse needs of different customers.
5.Precise temperature control:Optional integrated thermocouple to achieve precise temperature control,ensure stable mold temperature,improve product quality.
6.Compact design:Hot Runner Coil Heateris suitable for small installation spaces,min bending radius of R3 to R13 allows the use of almost any geometry,flexible design.
Technical parameters -Model:Depending on the specific product series and customized requirements,such as GC-coil, etc.
-Voltage:Hot Runner Coil Heateris customized according to customer needs,conventional voltage ranges such as 220V, 230V, 240V, etc.
-Power:The power range is wide,ranging from hundreds of watts to tens of thousands of watts,such as 115W～20000W,to meet different heating needs.
-Inner diameter of heating coil:Multiple specifications are available,such as 10～45mm,to meet different mold size requirements.
-Heating coil length: The length is adjustable, such as 30～300mm, and can be customized according to specific application occasions.
-Cross-sectional dimensions: Provide various cross-sectional shapes such as round, square and flat, such as Ø3x3, Ø4x4, etc., to increase design flexibility.
-Temperature control thermocouple: Optional K-type, J-type or E-type temperature control thermocouples, to achieve precise temperature monitoring and control.
-Shell material: Hot Runner Coil Heater uses high-quality materials such as CrNi steel to ensure that the heating coil is resistant to high temperature and corrosion.
-Insulation material: The interior is filled with strong compressed magnesium oxide, which provides excellent insulation effect and prolongs service life.
-Maximum temperature: Hot Runner Coil Heater can reach 700°C to 750°C, which meets high temperature heating needs.
Hot Runner Coil Heater is widely used in the following fields:
1. Injection molding machine nozzles and hot runner injection molds
2. PET preforms and thin-walled container molds
3. Hot runner manifolds
4. Blow molding machines, extruders and hot nozzles (sprue sleeves and nozzles)
5. Medical equipment, casting technology and other heat treatment processes
